Heavy-duty and medium-sized refrigerated fresh-keeping truck

Heavy-Duty Refrigerated Fresh-Keeping Truck | Multi-Use Cold Chain Transport Van with PU Insulation

Description
Inquiry

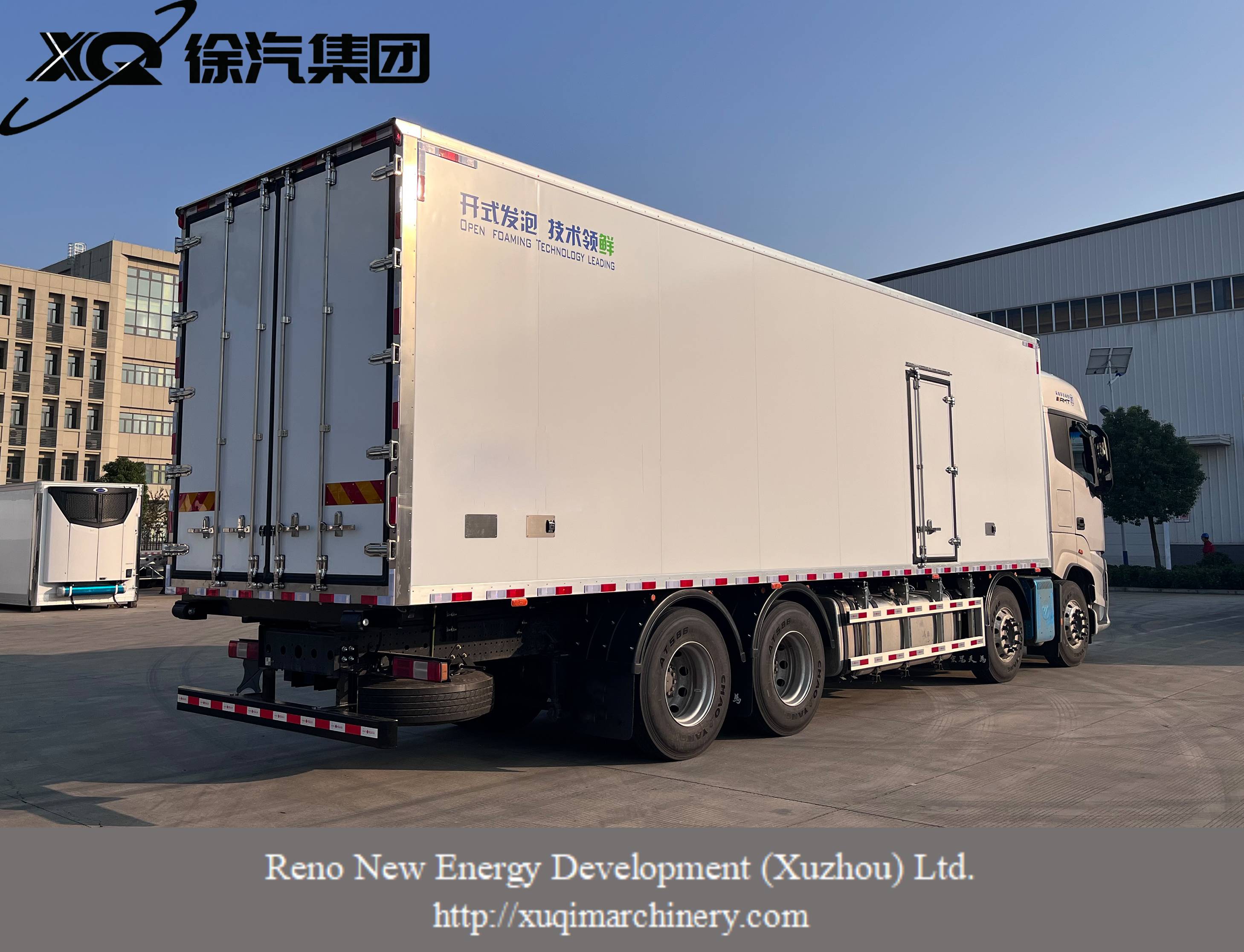

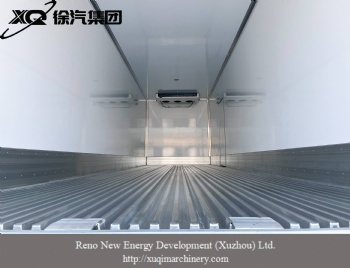

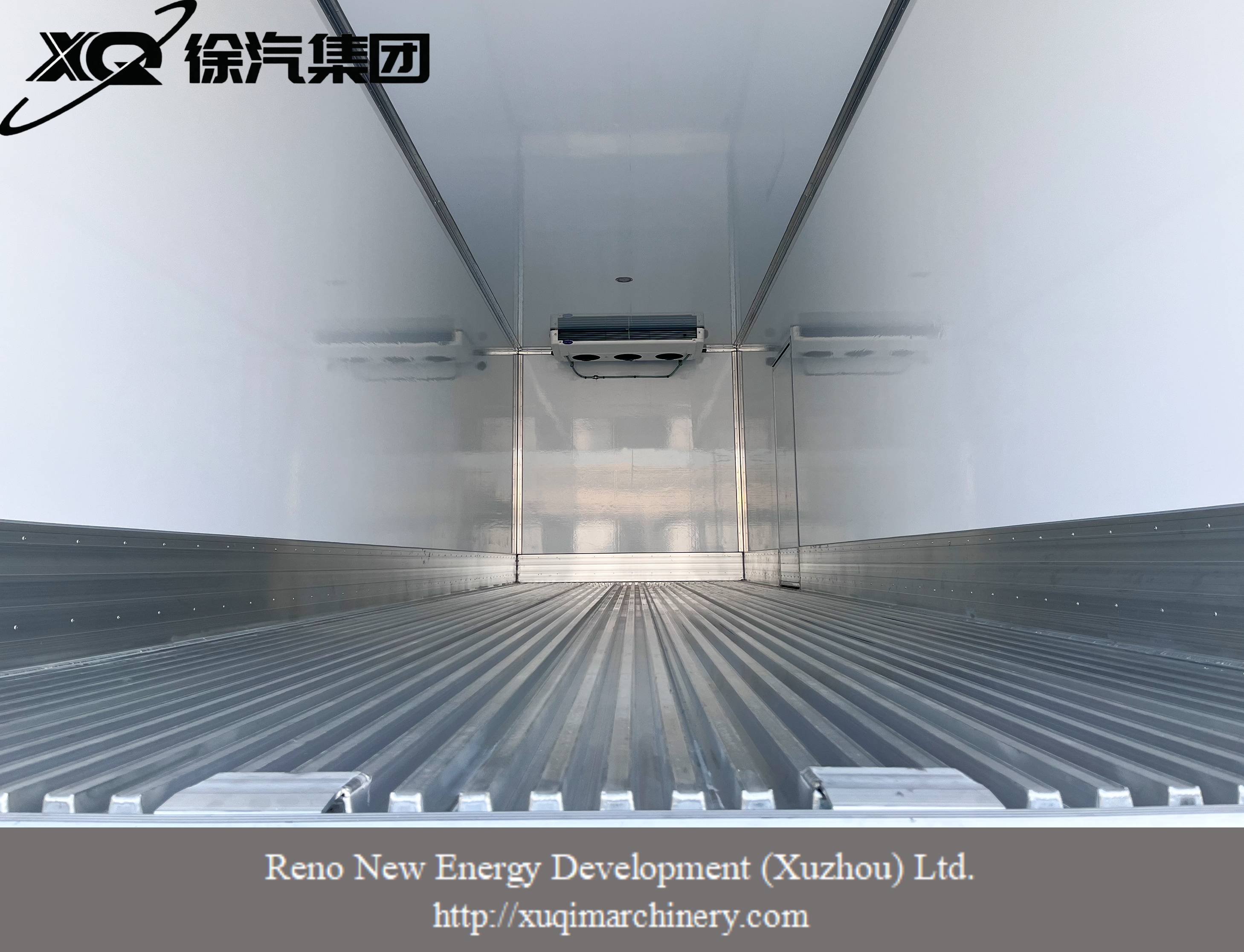

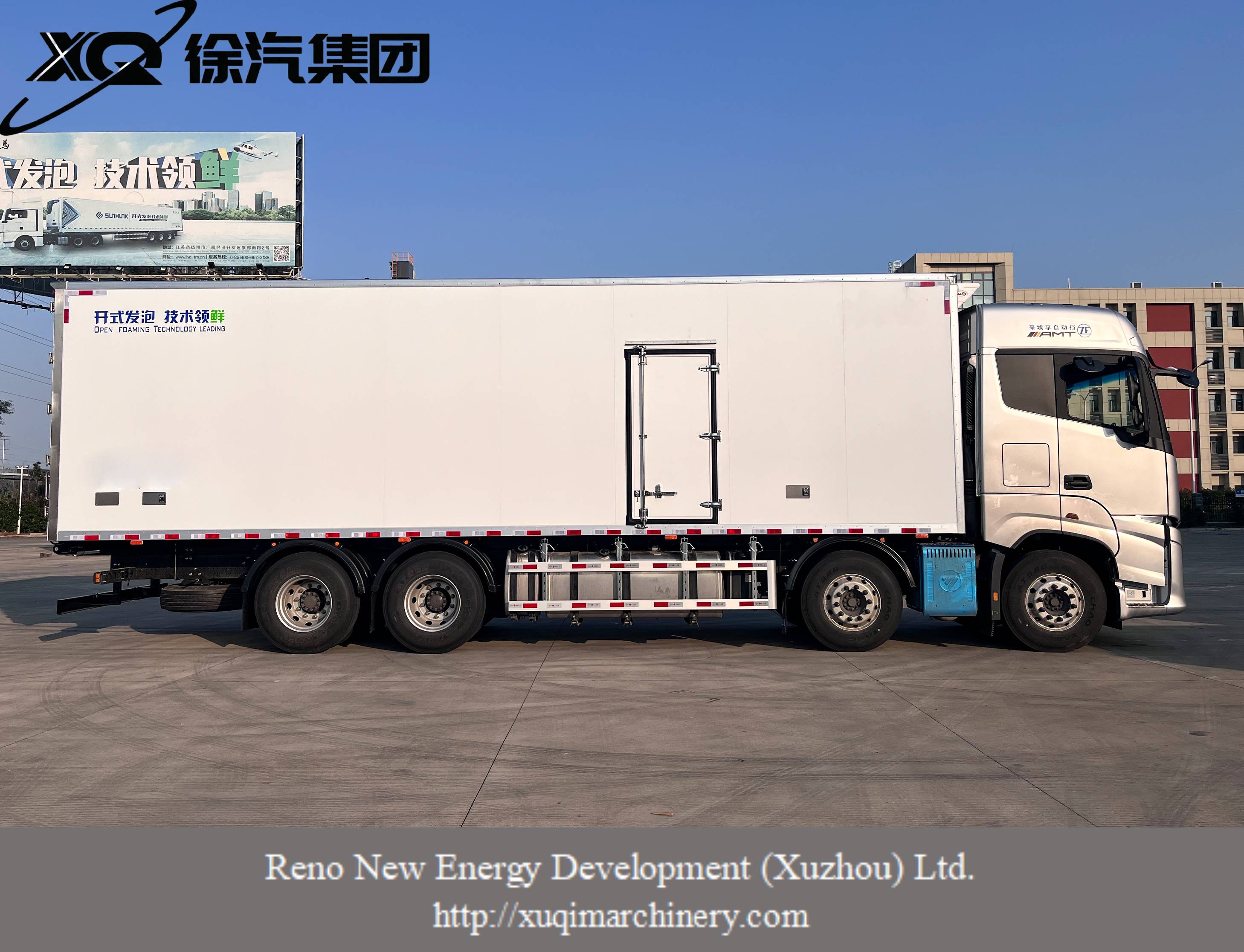

This Heavy-Duty and Medium-sized Refrigerated Fresh-Keeping Truck is a versatile and robust transport solution designed for the general cold chain logistics of fresh produce, dairy, and packaged goods. The cargo body is expertly crafted using a foaming process with food-grade thermoplastic boards and pre-coated aluminum sheets, ensuring a hygienic and durable interior. High-density polyurethane insulation (80mm thickness) provides excellent thermal efficiency, maintaining consistent temperatures to preserve cargo freshness during long-haul journeys.

Key parameter	Parameter values
Process specification	Foaming process
Inner/outer skin material	Food-grade thermoplastic board/pre-coated metal sheet
Insulation layer material	Polyurethane
Vehicle model standard	Medium and heavy-duty trucks
Insulation board top plate (mm)	80
Insulation board side panel (mm)	80
Insulation board front panel (mm)	80
Back panel of insulation board (mm)	80
Insulation board bottom plate (mm)	137 (including 35mm castle-type aluminum guide rail)
Outer cuticle	Pre-coated aluminum sheet
Outer skin material of the floor panel	Thermoplastic sheet
Floor subframe	High-strength steel
Bottom plate drainage hole	Sunhunk standard configuration: 2 units in the front-end or 2 units in each of the front and rear-end systems.
Back door frame and hardware components	304 stainless steel
Wear strip	High-strength aluminum profile (approximately 300mm in height)
Floor type	Cage-type aluminum guide rail (approximately 35mm)
Medicine curtain	Not have
Medical ventilation structure	Not have
Fatty pad slide	Not have
Pre-embedded seafood	Not have
