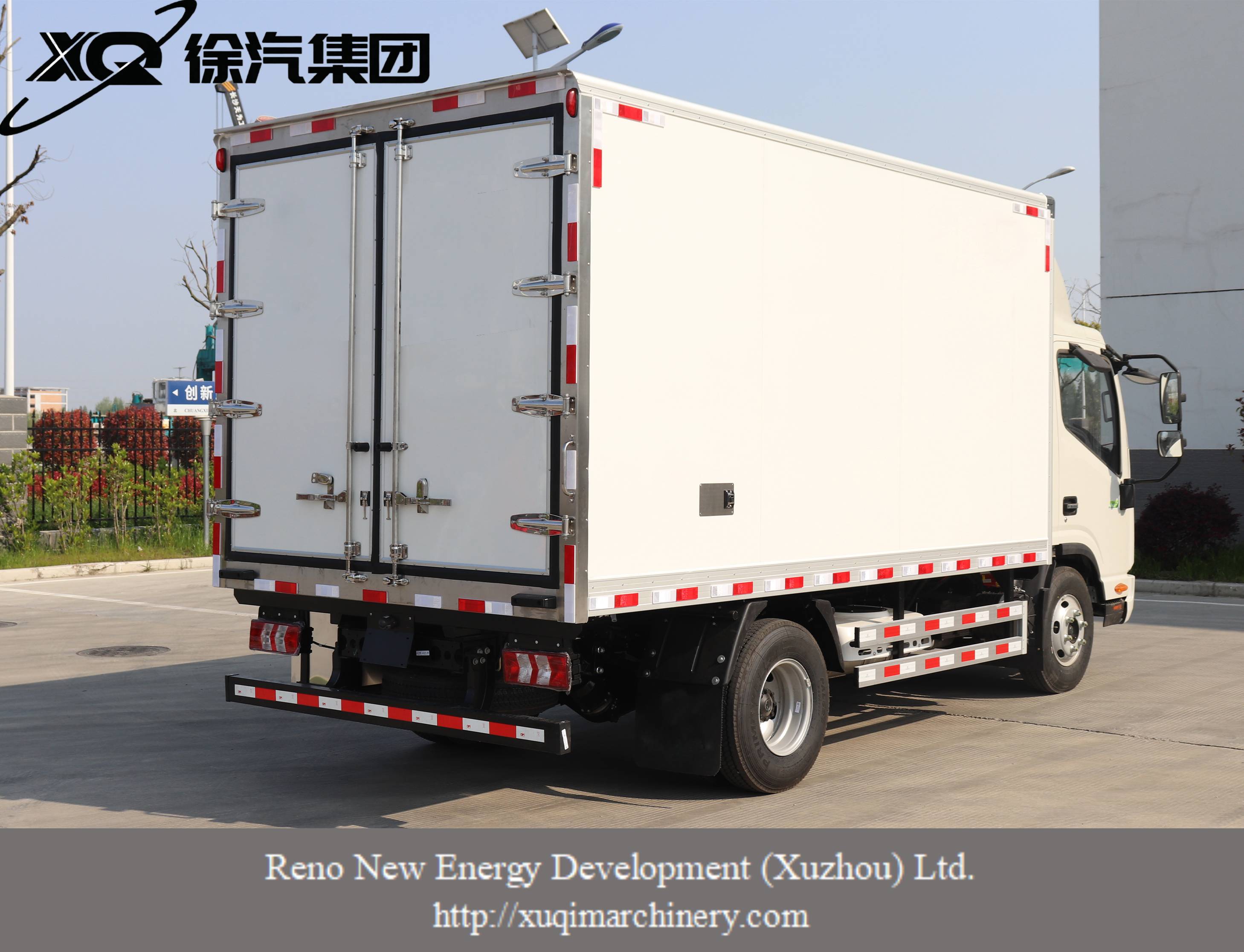

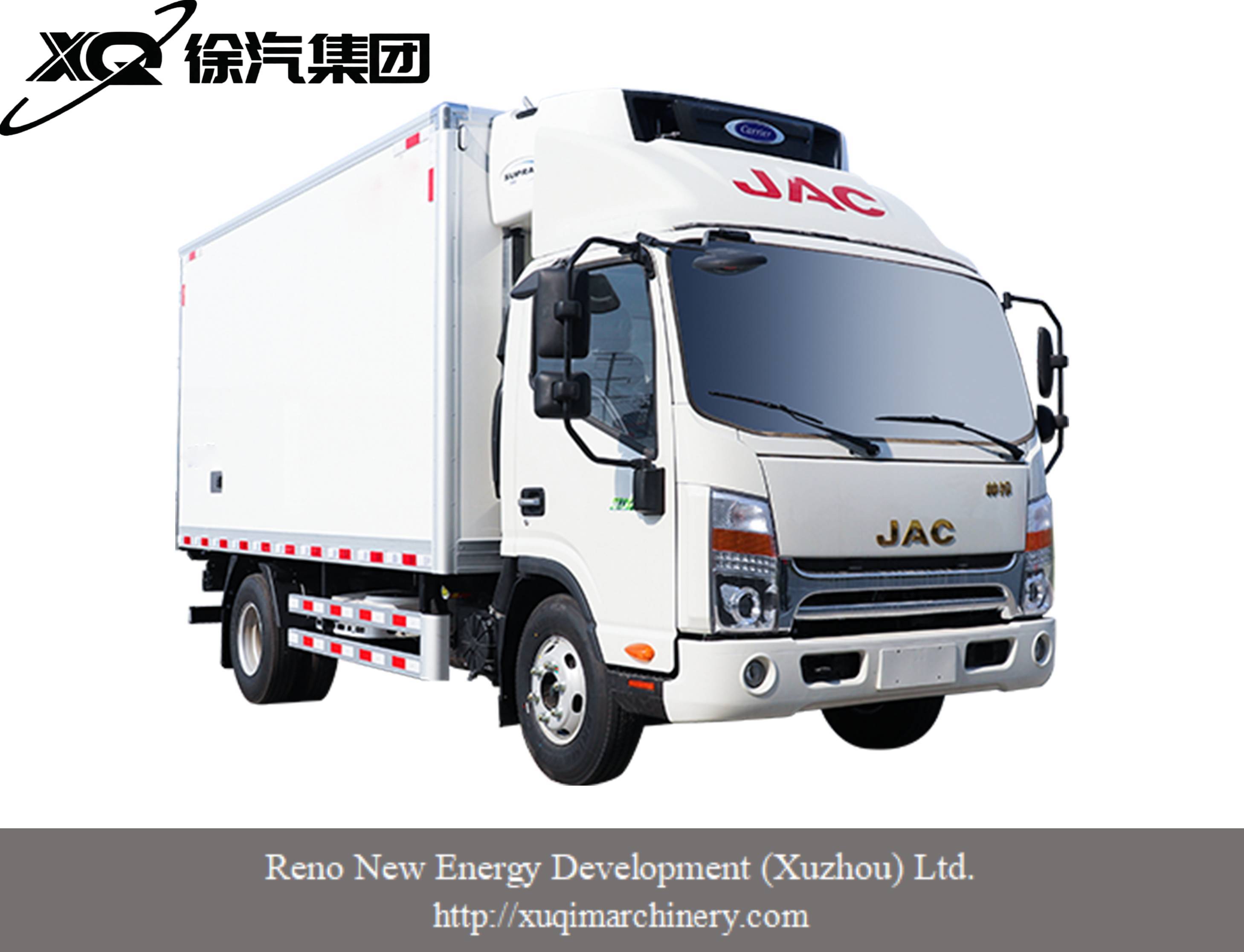

Light-duty medical refrigerated truck

Light-Duty Medical Refrigerated Truck | GSP Compliant Vaccine Transport with Ventilation System

Description
Inquiry

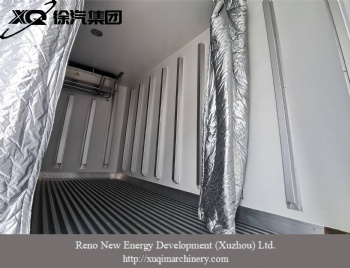

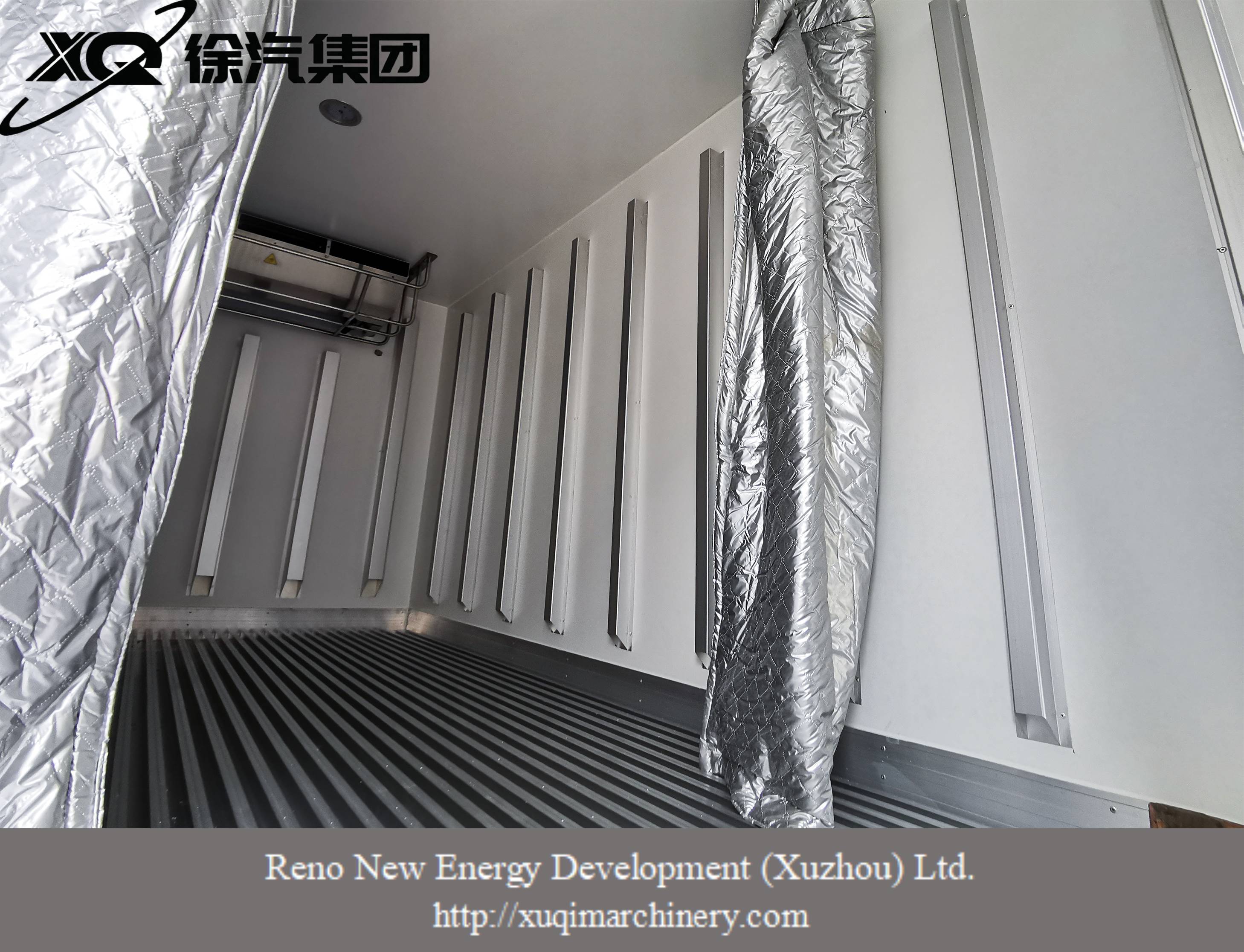

This Light-Duty Medical Refrigerated Truck is a specialized pharmaceutical transport solution engineered to meet the rigorous demands of the healthcare industry. The cargo body is constructed with food-grade thermoplastic boards and pre-coated aluminum sheets, featuring a comprehensive 80mm polyurethane insulation layer on all sides to ensure superior thermal stability and temperature uniformity.

Key parameter	Parameter values
Process specification	Foaming process
Inner/outer skin material	Food-grade thermoplastic board/pre-coated metal sheet
Insulation layer material	Polyurethane
Vehicle model standard	Light-duty medical refrigerated truck
Insulation board top plate (mm)	80
Insulation board side panel (mm)	80
Insulation board front panel (mm)	80
Back panel of insulation board (mm)	80
Insulation board bottom plate (mm)	130 (including 50mm castle-type aluminum guide rail)
Outer skin material of the floor panel	Thermoplastic sheet
Floor subframe	High-strength steel
Bottom plate drainage hole	Sunhunk standard configuration: 2 units in the front-end or 2 units in each of the front and rear-end systems.
Back door frame and hardware components	304 stainless steel
Wear strip	High-strength aluminum profile (approximately 150mm in height)

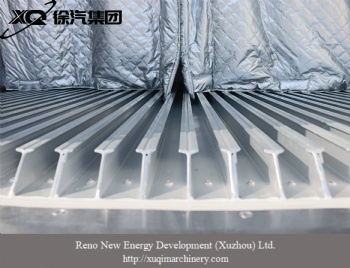

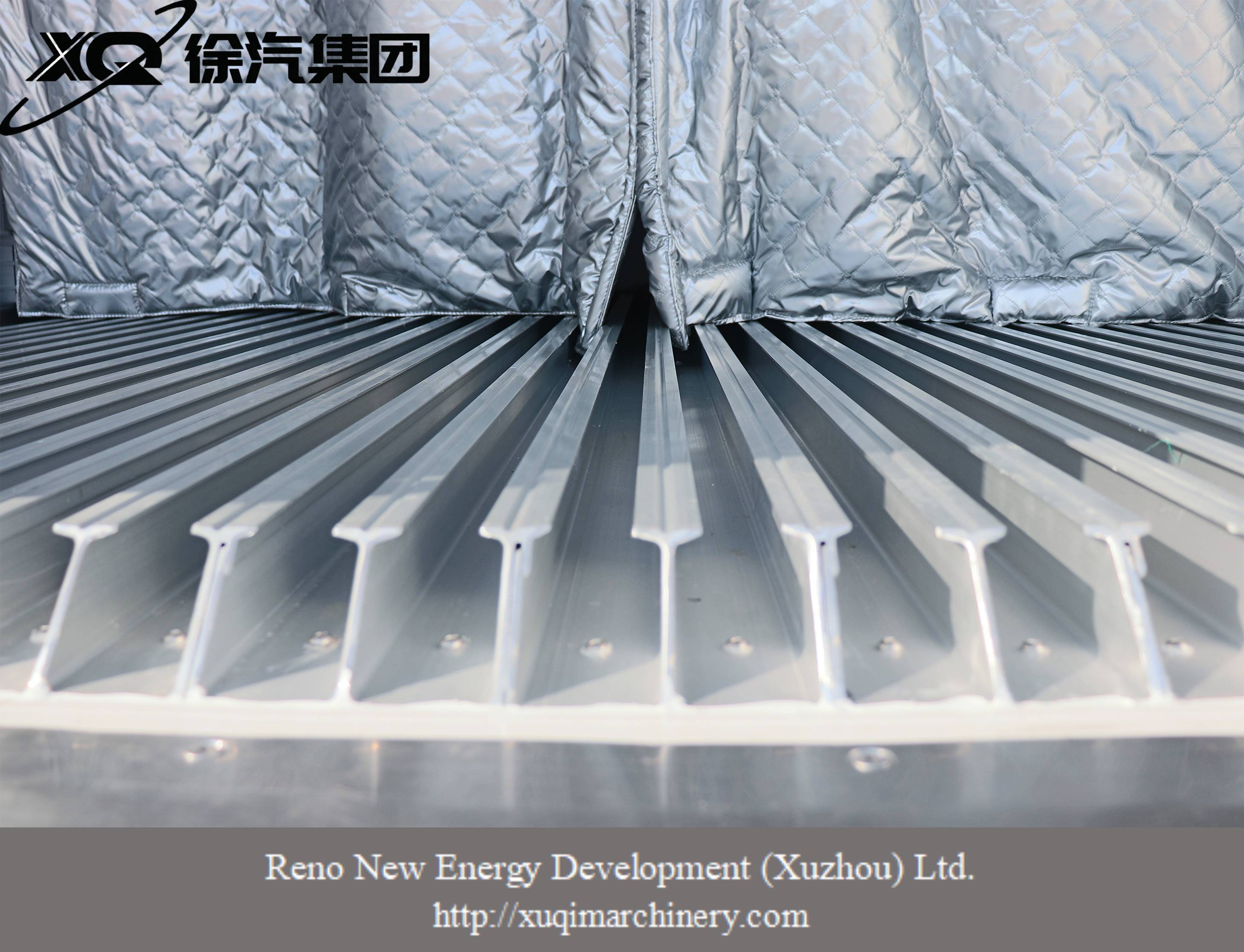

Floor type	Cage-type aluminum guide rail (approximately 50mm)

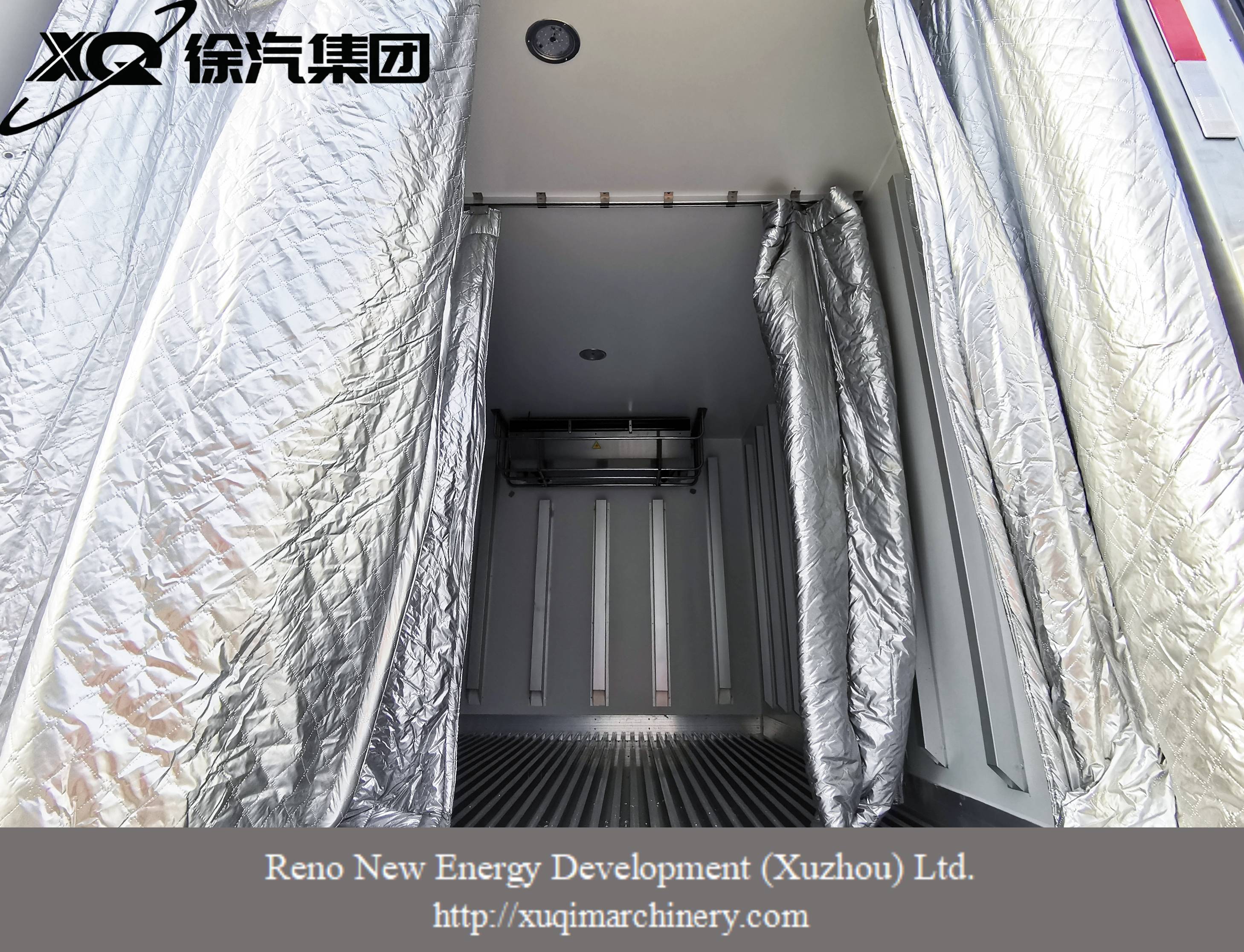

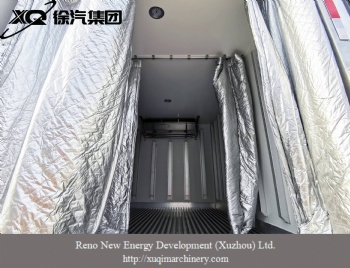

Medicine curtain	Standard pvc/waterproof cotton curtain
Medical ventilation structure	Rectangular aluminum alloy medical ventilation strip with a spacing of 400mm, front panel 10080mm, side panels and rear panel 5050mm
Fatty pad slide	Not have
Pre-embedded seafood	Not have
