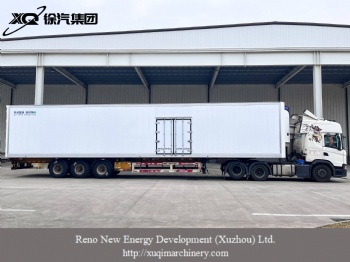

3-Liter Refrigerated Truck

3-Liter Refrigerated Truck | High-Volume Cold Chain Transport (84-131m³) | PU Insulated Fresh Food Container

Description
Inquiry

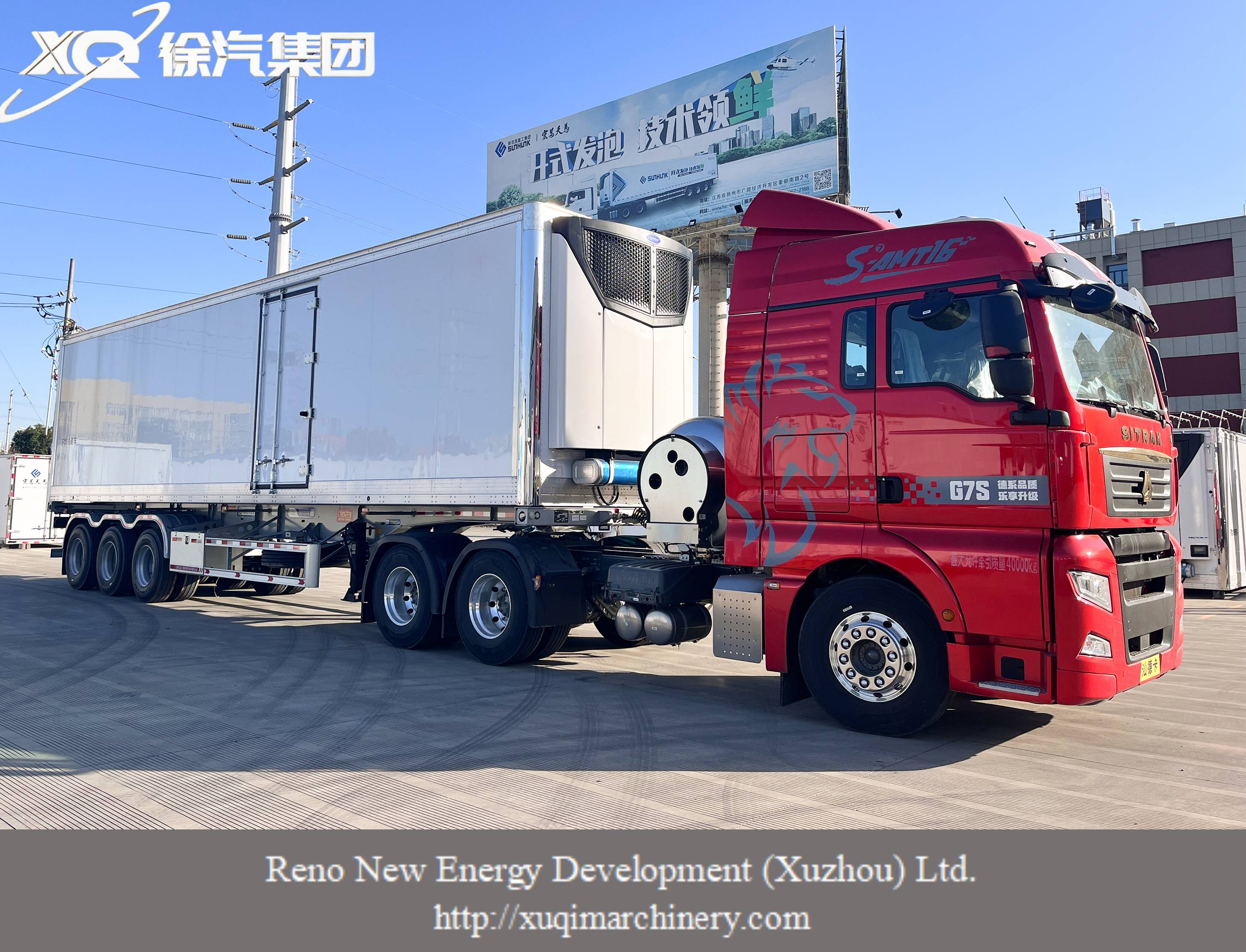

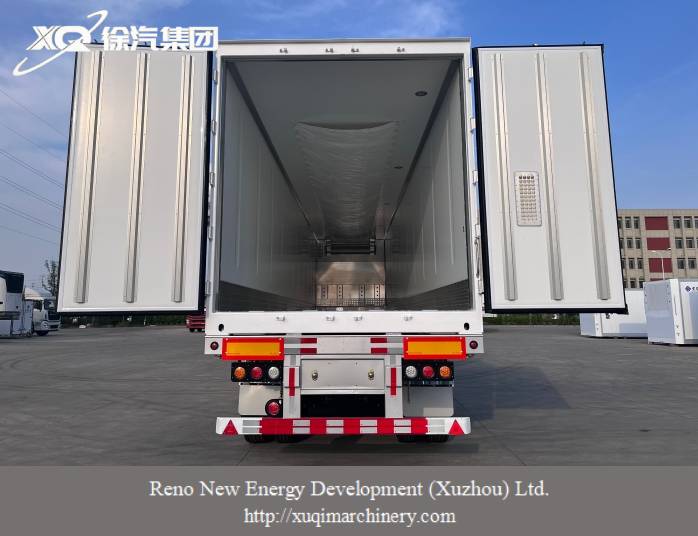

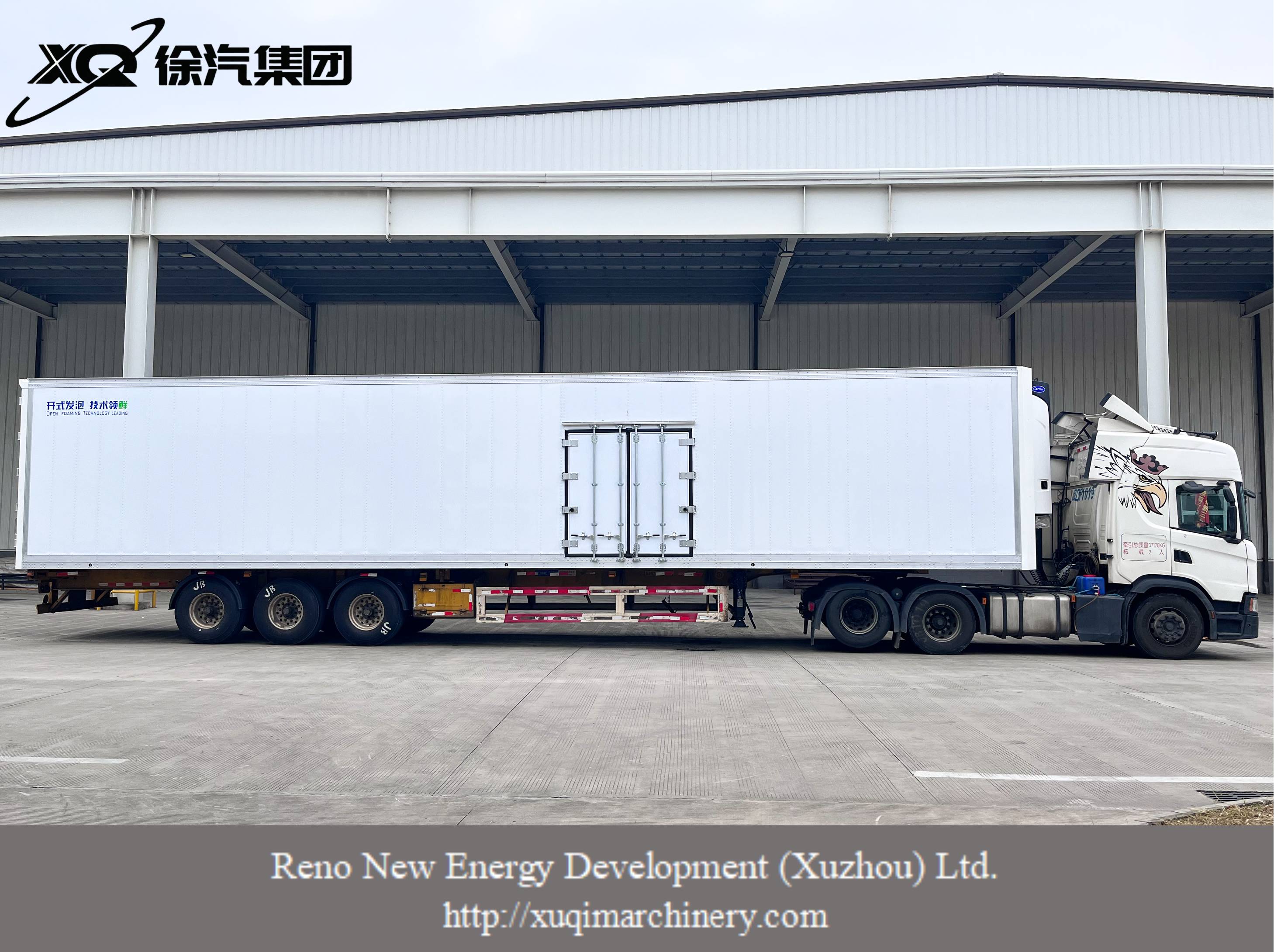

The 3-Liter Refrigerated Truck is a premium heavy-duty transport solution designed for high-volume cold chain logistics. Engineered with a specialized foaming process, this vehicle features a robust insulation system comprising 100mm top and front panels, 80mm rear panels, and a substantial 200mm bottom plate to ensure maximum thermal retention. The cargo body is constructed from food-grade thermoplastic boards and pre-coated aluminum sheets, offering a hygienic and durable environment for perishable goods.

Key parameter	Parameter values
Process specification	Foaming process
Inner/outer skin material	Food-grade thermoplastic board/pre-coated aluminum sheet
Insulation layer material	Polyurethane
Vehicle model standard	3l refrigerated fresh food container
Overall length （mm）	13716/14630/15500/16450
Overall bandwidth （mm）	2550/2550/2860/3000
Total height （mm）	2896/2896/3160/3160
Inner length (mm, from inner skin to inner skin)	13536/14450/15313/16263
Inner width (mm, from inner skin to inner skin)	2396/2396/2706/2846
Inner height (mm, from the aluminum profile to the inner mongolia skin)	2580/2580/2844/2844
Internal volume (m3) (theoretical)	84/90/118/131
Insulation board top plate (mm)	100
Insulation board side panel (mm)	70
Insulation board front panel (mm)	100
Back panel of insulation board (mm)	80
Insulation board bottom plate (mm)	200 (35mm castle-type flooring)
Outer cuticle	Pre-coated aluminum sheet
Outer skin material of the floor panel	Thermoplastic sheet

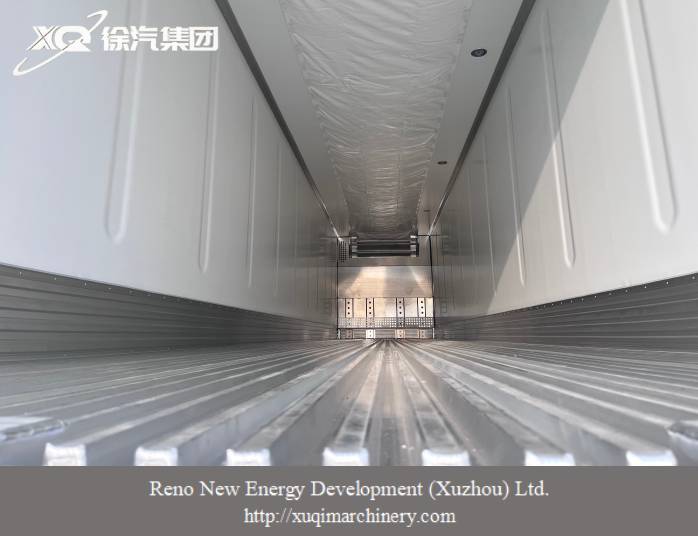

Internal form of the floor slab	High-strength t6-class castle-type ventilated aluminum floor (approximately 35mm thick)
Wear strip	High-strength aluminum profile (approximately 300mm in height)
Bottom plate drainage hole	Sunhunk standard configuration: Two units each at the front and rear
