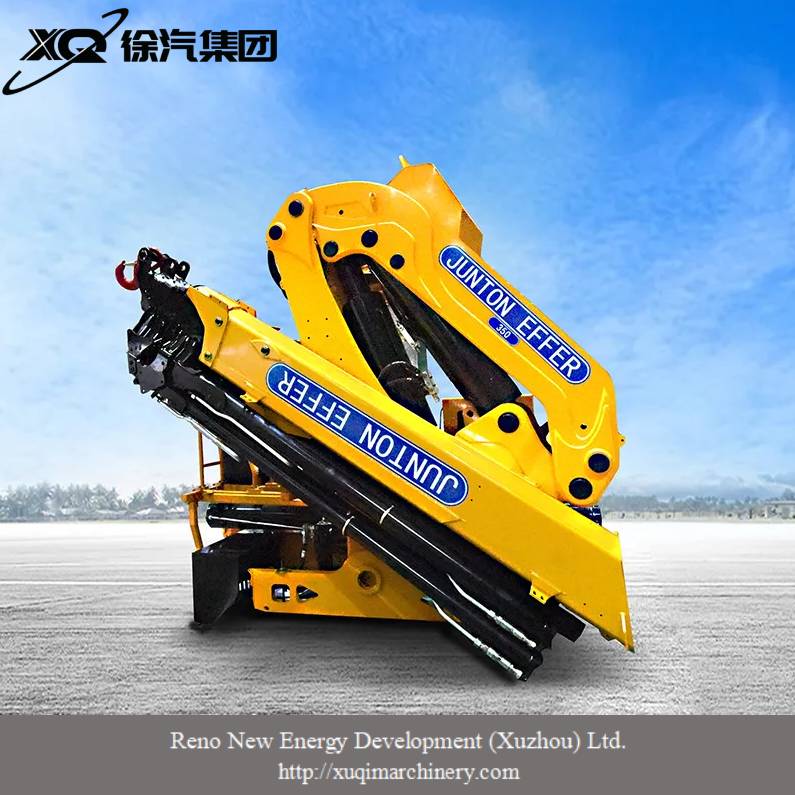

Knuckle boom crane Effer350

EFFER350-4S 308.5kNm Truck Mounted Crane, 14.68m Working Range, H1-B3 Rated, 4090kg Weight

Description
Inquiry

The Effer350-4S is a compact and lightweight knuckle boom crane engineered for high performance on smaller truck chassis. Weighing only 4090kg, it delivers a maximum lifting moment of 308.5kNm and a working range of 14.68m, making it ideal for urban logistics and utility services. The crane is EN12999 H1-B3 rated, ensuring compliance with rigorous international safety standards.

Product Parameter
Item	Unit	EFFER350-4S
Max Lifting Moment	kNm	308.5
Max Working Range	m	14.68
First-Arm Angle(Max Moment)	°	26
EN12999 Working Type		H1-B3
Max Dynamic Load Moment	kNm	419
Slewing Moment	kNm	68
Max Off-Load Angle	°	5
Slewing Angle	°	407
Outtrigger Span	mm	6400
Max.support reaction of landing gear	kN	135
Max Flow of Main Valve	1/min	100
Max Pressure of Main Valve	Mpa	31
Minimun Power Required	kW	52
Oil Tank Capacity	L	140
Input Voltage	V	24/12DC
Crane Weight	Kg	4090
Hydraulic oil weight	Kg	130
Amount of Tie Rods	°	8
Tie Rods Size	°	M33X2
Material of Tie Rods	°	42CrMo Slack quench
Tightening torque of Tie Rod	Nm	1200
