Process specification

Foaming process

Inner/outer skin material

Food-grade thermoplastic board/pre-coated aluminum sheet

Insulation layer material

Polyurethane

Vehicle model standard

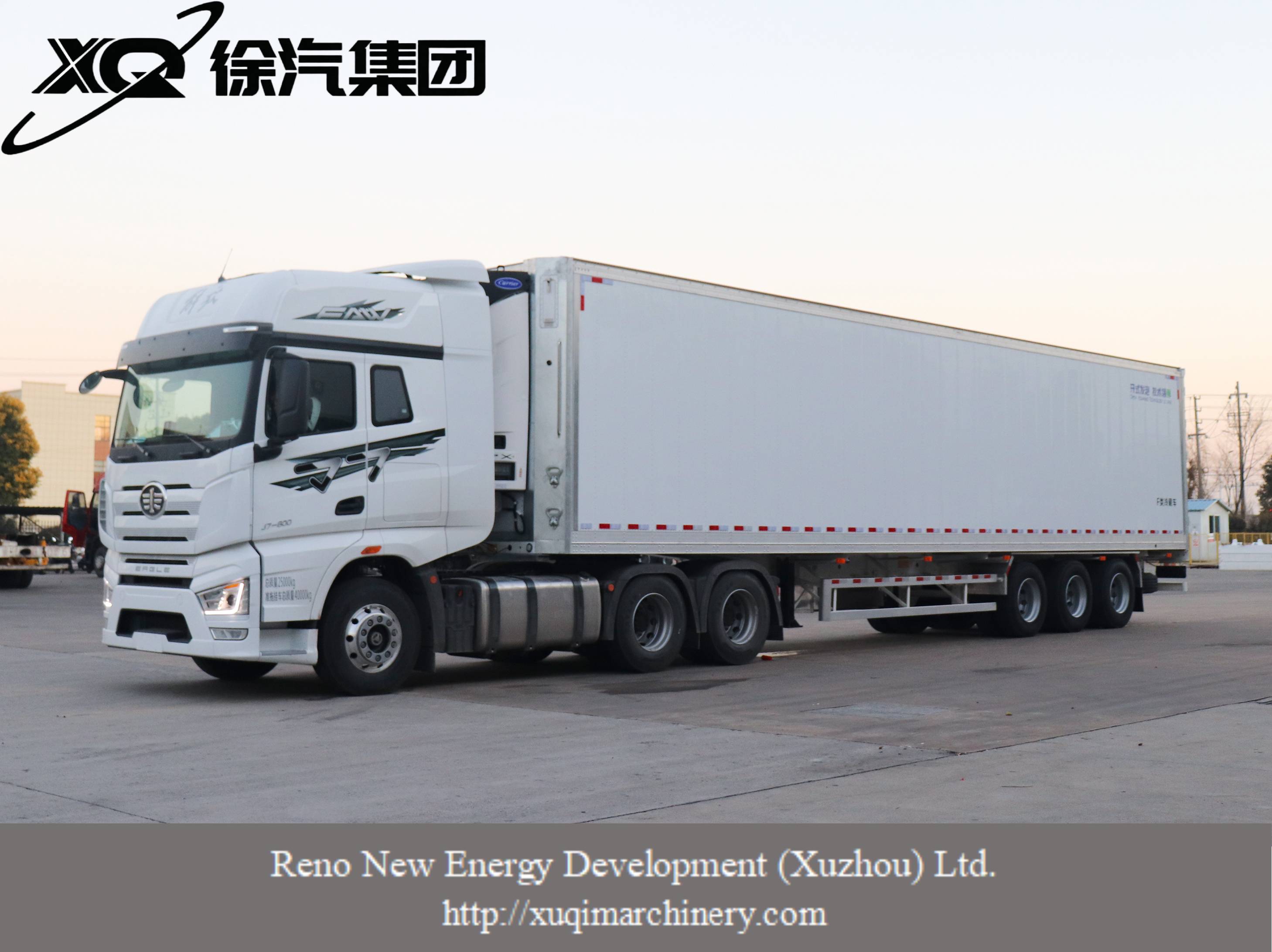

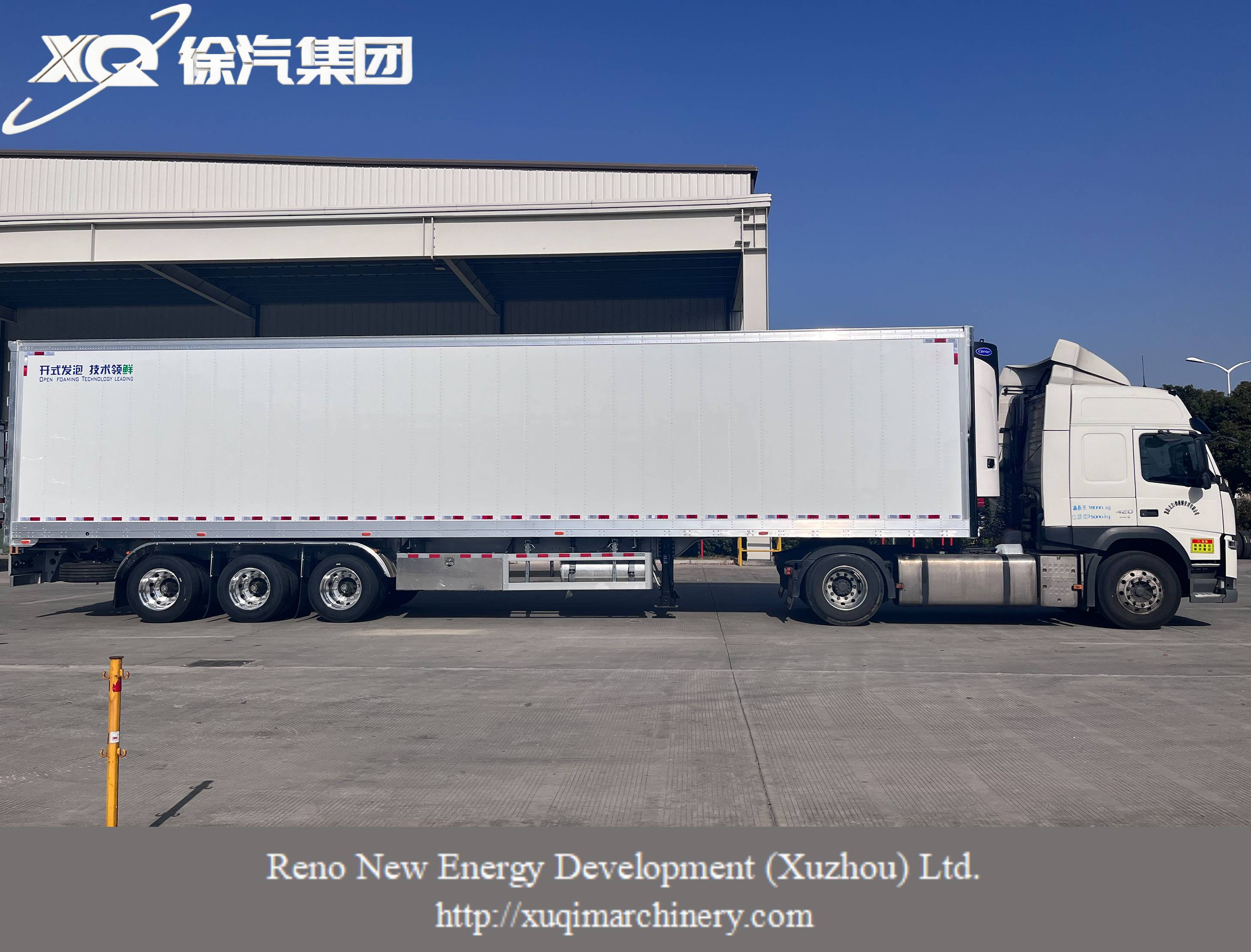

Single-tire refrigerated semi-trailer/double-tire refrigerated semi-trailer

Overall length （mm）

13600

Overall bandwidth （mm）

2600

Total height （mm）

4000

Inner length (mm, from inner skin to inner skin)

13413/13433

Inner width (mm, from inner skin to inner skin)

2426/2446/2466

Inner height (mm, from the aluminum profile to the inner mongolia skin)

2440/2490/2540/2600

Internal volume (m3) (theoretical)

80~82/80~86

Insulation board top plate (mm)

100

Insulation board side panel (mm)

70

Insulation board front panel (mm)

100

Back panel of insulation board (mm)

80

Insulation board bottom plate (mm)

200 (35mm cast-in-place aluminum flooring)

Outer skin material of the floor panel

Thermoplastic sheet

Internal form of the floor slab

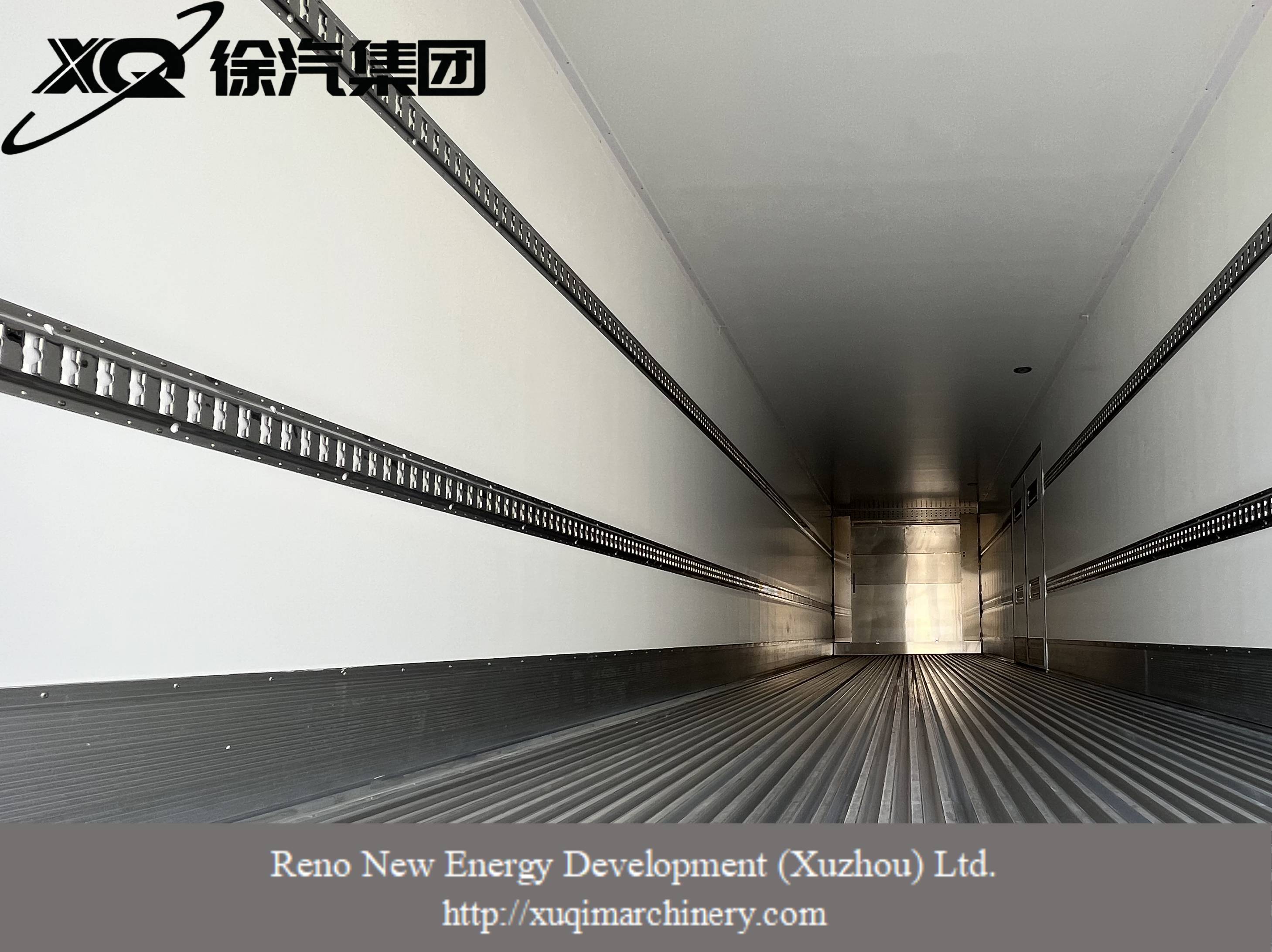

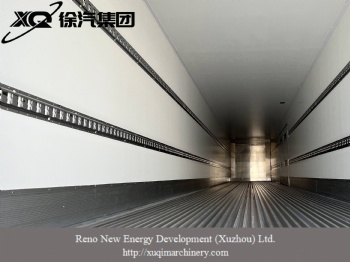

High-strength t6-class castle-type ventilated aluminum floor (approximately 35mm thick)

Wear strip

High-strength aluminum profile (approximately 300mm in height)

Bottom plate drainage hole

Sunhunk standard configuration: Two units each at the front and rear

Lower frame

Full-load structure without main beam / structure with main beam

Side protection

Aluminum alloy with flip feature

Rear bumper

High-strength carbon steel spray painting

Toolbox

Aluminum alloy tool box/1

Backup tire rack

2 sets (1 tractor and 1 trailer)

Backdoor ladder

Pull-up ladder (galvanized carbon steel)

Traction pin

Bolted assembly, jost50# traction pin

Leg support

Jost-a300c/a440

Hang

Air suspension/4-leaf leaf spring air suspension

Axle

Three-axle, bpw axle (400k)

Abs

Wabco (weberko)

Tyre

425/65r22.5 – 6 pieces (cherry blossom pattern) / 12r22.5, 11r22.5, 275r22.5, 295r22.5 – 12 pieces (double coin design)

Rim section

Aluminum alloy wheel rims: 13×22.5 (6 pieces, alcoa) / aluminum alloy 9.0/8.25-22.5 (12 pieces, peran)

Braking mode

Brake drum/disc brake
