Frozen fresh mid-mounted axle trailer

Frozen Fresh Mid-Mounted Axle Trailer | High-Stability Insulated Transport for Cold Chain Logistics

Description
Inquiry

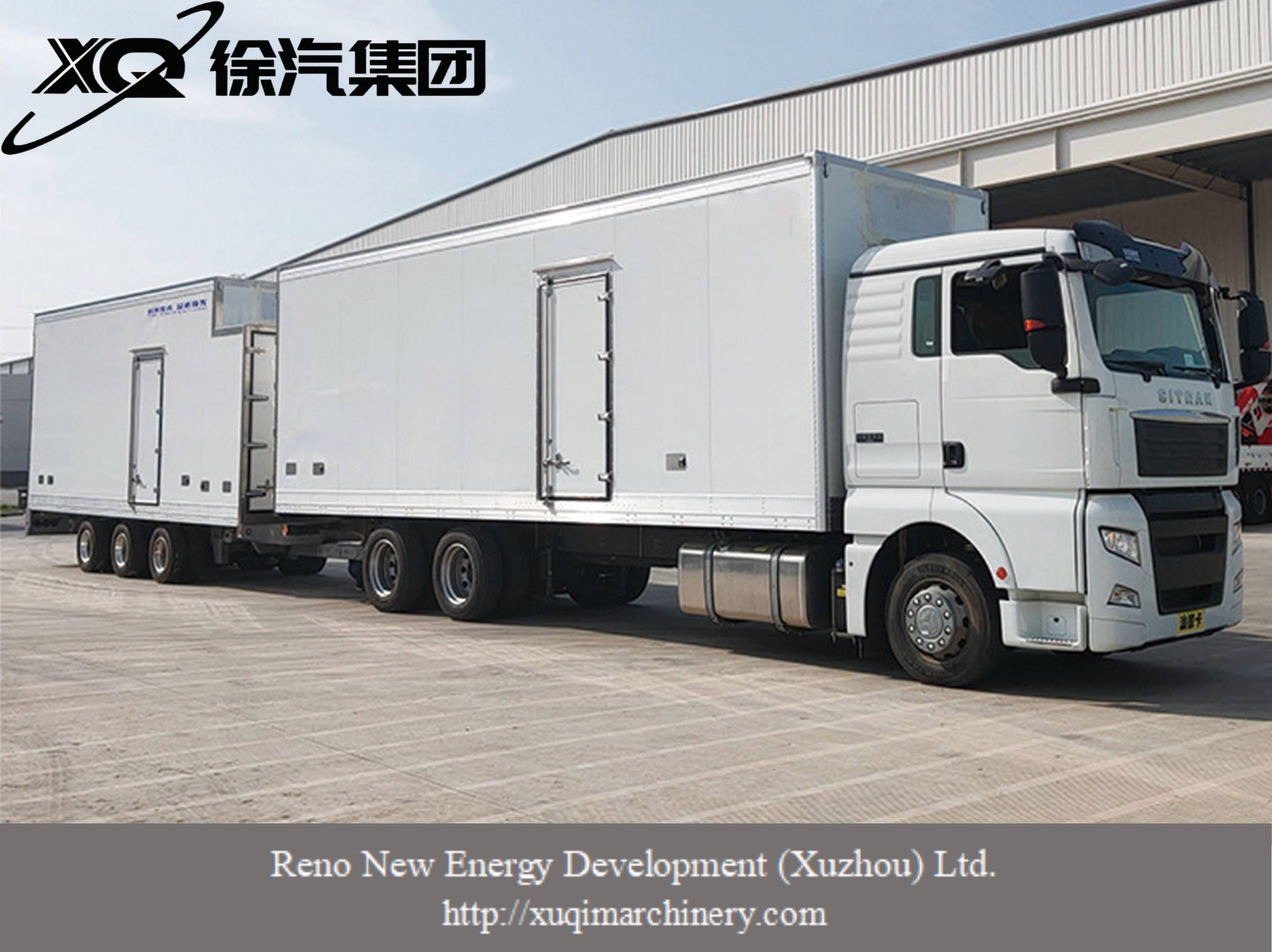

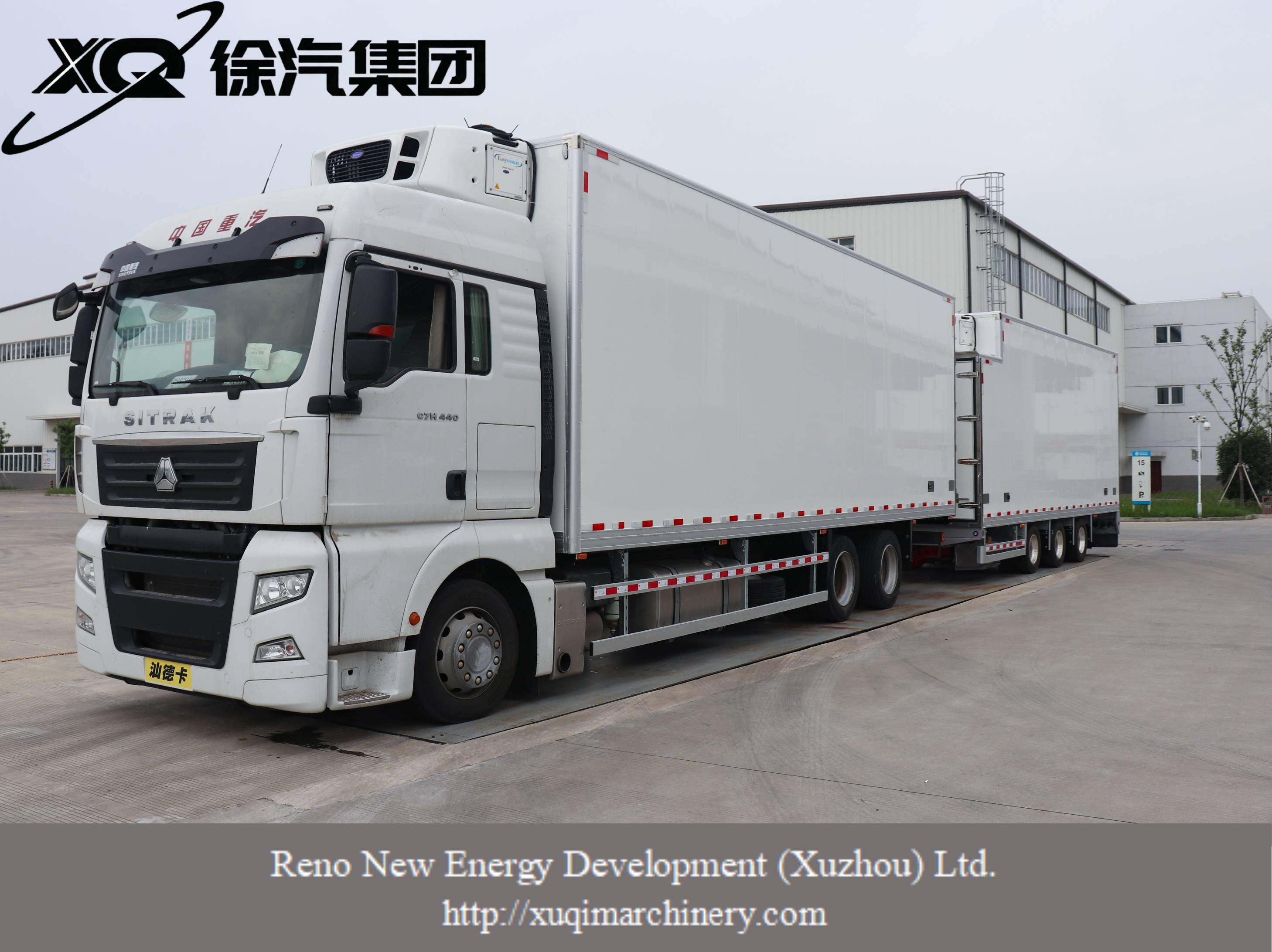

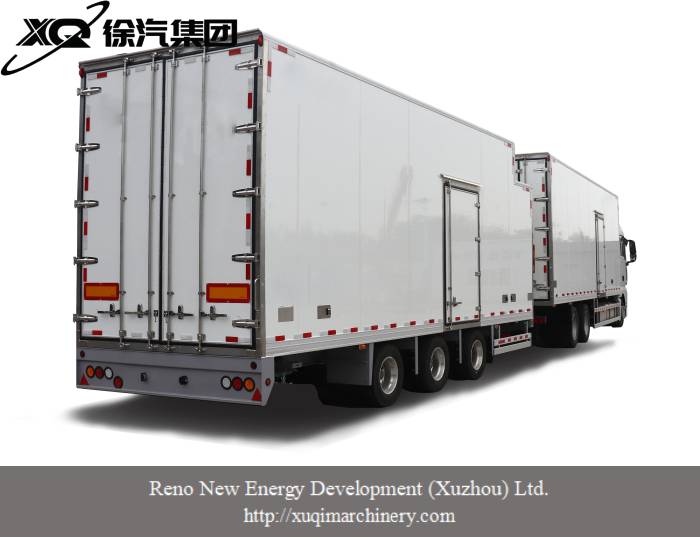

This Frozen Fresh Mid-Mounted Axle Trailer is a specialized transport solution engineered for the efficient and stable delivery of temperature-sensitive goods. The cargo body is constructed with food-grade thermoplastic boards and pre-coated aluminum sheets, insulated with 80mm polyurethane panels to ensure effective thermal retention and temperature stability.

Key parameter	Parameter values
Process specification	Foaming process
Inner/outer skin material	Food-grade thermoplastic board/pre-coated metal sheet
Insulation layer material	Polyurethane
Vehicle model standard	Frozen fresh mid-axle trailer
Insulation board top plate (mm)	80
Insulation board side panel (mm)	80
Insulation board front panel (mm)	80
Back panel of insulation board (mm)	80
Insulation board bottom plate (mm)	137 (including 35mm castle-type aluminum guide rail)
Outer cuticle	Pre-coated aluminum sheet
Outer skin material of the floor panel	Thermoplastic sheet
Floor type	Cage-type aluminum guide rail (approximately 35mm)
Floor subframe	High-strength steel
Bottom plate drainage hole	Sunhunk standard configuration: 2 units in the front-end or 2 units each in the front-end and back-end.
Back door frame and hardware components	304 stainless steel
Wear strip	High-strength aluminum profile (approximately 300mm in height)
