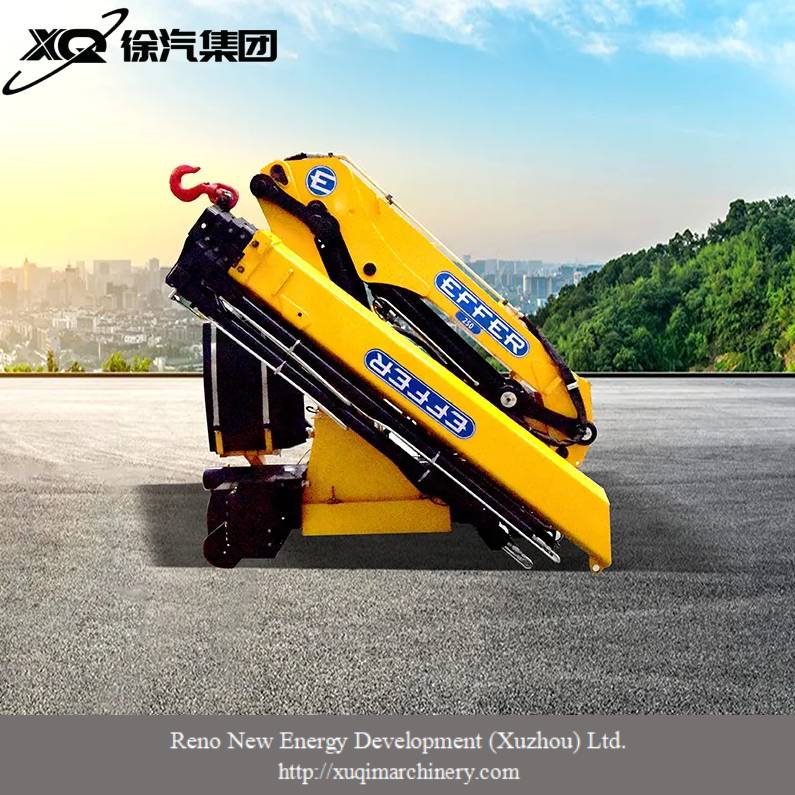

Knuckle boom crane Effer250

Effer250-4S 205.5kNm Truck Mounted Crane, 12.88m Working Range, H1-B3 Rated, 2950kg Weight

Description
Inquiry

The Effer250-4S is an ultra-lightweight knuckle boom crane designed for versatility on light commercial vehicles and smaller chassis. Weighing only 2950kg, it delivers a maximum lifting moment of 205.5kNm and a working range of 12.88m, making it perfect for urban deliveries and utility maintenance. The crane is EN12999 H1-B3 rated, ensuring it meets high international safety and performance standards.

Product Parameter
Item	Unit	Effer250-4S
Max Lifting Moment	kNm	205.5
Max Working Range	m	12.88
First-Arm Angle(Max Moment)	°	26
EN12999 Working Type		H1-B3
Max Dynamic Load Moment	kNm	309
Slewing Moment	kNm	40
Max Off-Load Angle	°	4
Slewing Angle	°	400
Outtrigger Span	mm	5700
Max.support reaction of landing gear	kN	126
Max Flow of Main Valve	1/min	70
Max Pressure of Main Valve	Mpa	34.5
Minimun Power Required	kW	41
Oil Tank Capacity	L	140
Input Voltage	V	24/12DC
Crane Weight	Kg	2950
Hydraulic oil weight	Kg	130
Amount of Tie Rods	°	8
Tie Rods Size	°	M27
Material of Tie Rods	°	42CrMo Slack quench
Tightening torque of Tie Rod	Nm	600
