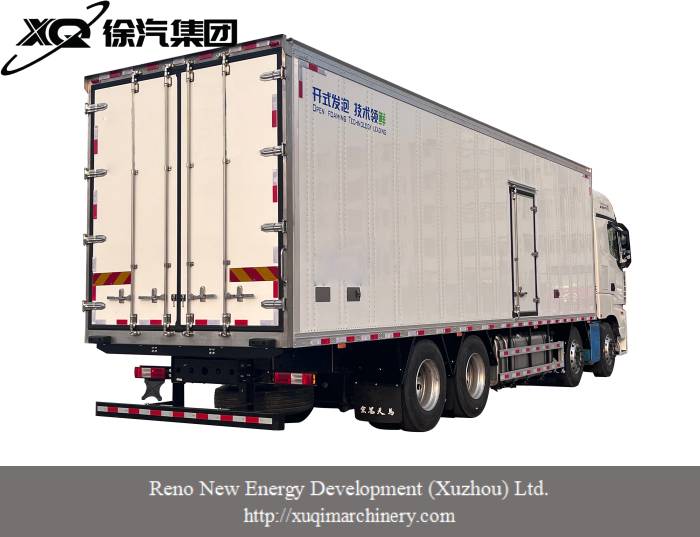

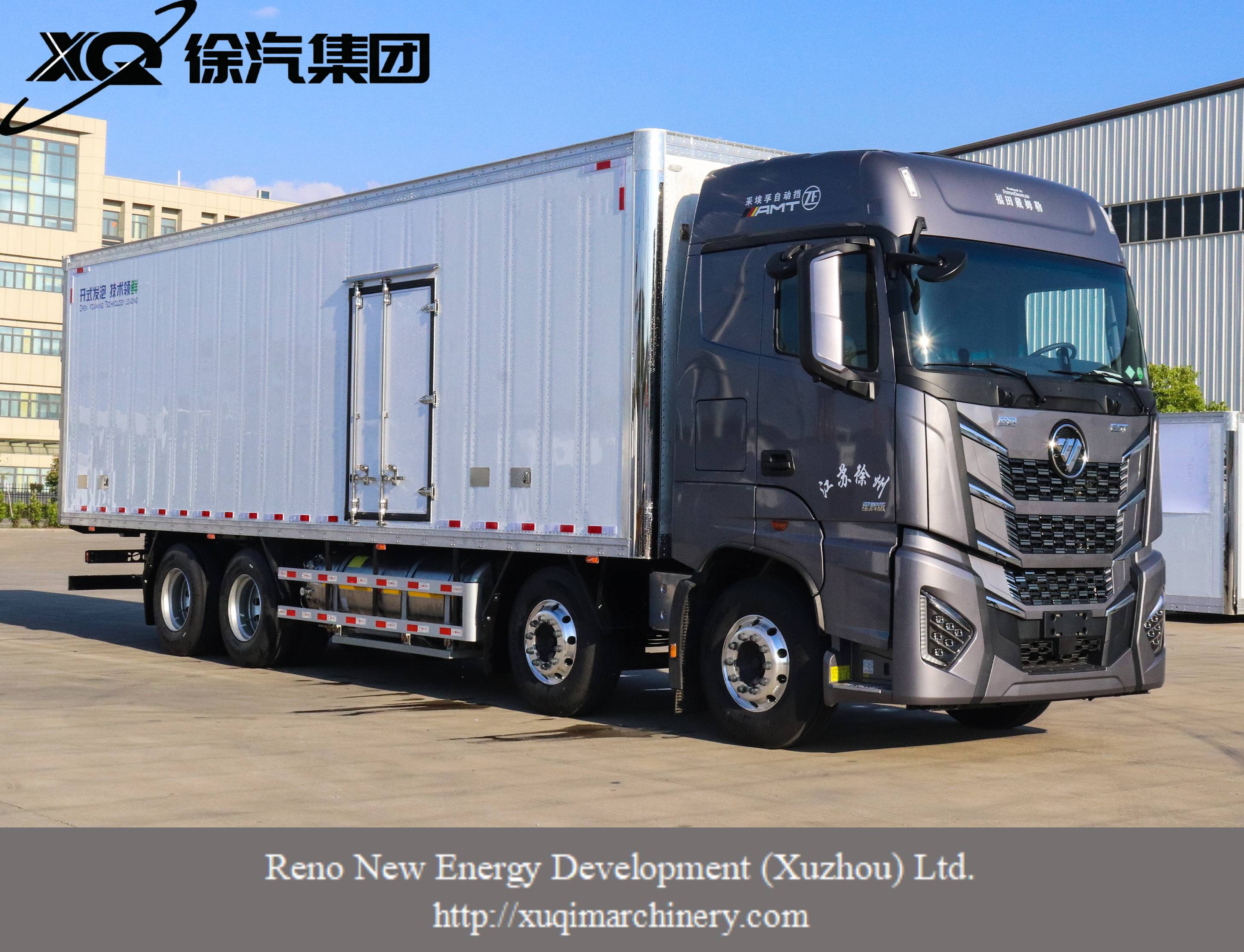

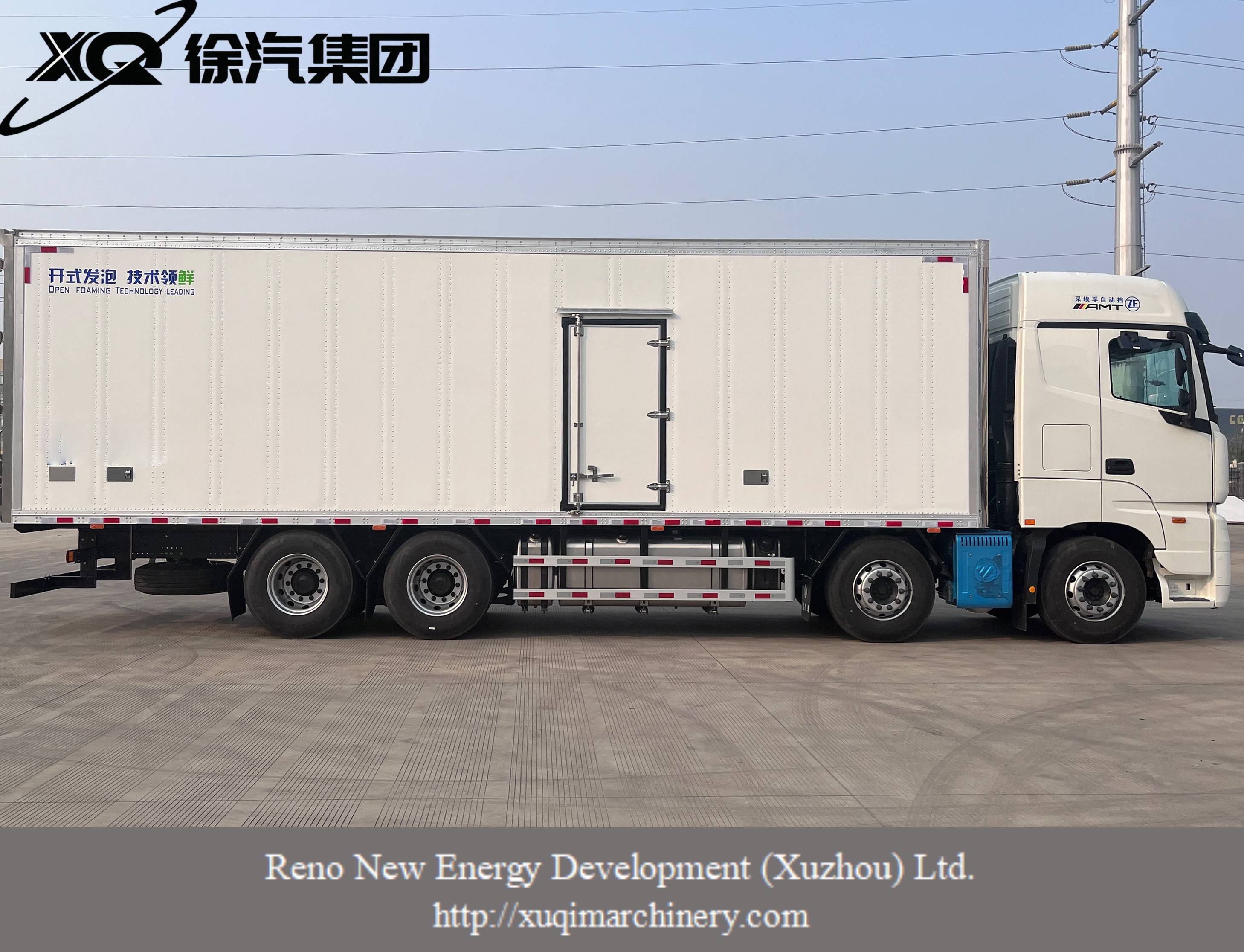

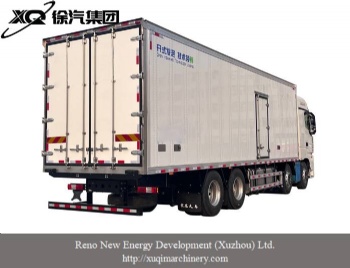

Heavy-duty and medium-sized meat refrigerated truck

Heavy-Duty Meat Refrigerated Truck | 304 Stainless Steel Meat Transport Van with Guide Rails

Description
Inquiry

This Heavy-Duty and Medium-sized Meat Refrigerated Truck is a specialized cold-chain transport solution engineered specifically for the safe and efficient delivery of fresh and frozen meats. The cargo body is constructed with food-grade thermoplastic and pre-coated aluminum sheets, insulated with high-density polyurethane (80mm-100mm thickness) to ensure superior thermal retention and temperature stability.

Key parameter	Parameter values
Process specification	Foaming process
Inner/outer skin material	Food-grade thermoplastic board/pre-coated metal sheet
Insulation layer material	Polyurethane
Vehicle model standard	Medium and heavy-duty trucks towing meat refrigerated trucks
Insulation board top plate (mm)	100
Insulation board side panel (mm)	80
Insulation board front panel (mm)	80
Back panel of insulation board (mm)	80
Insulation board bottom plate (mm)	115 (including 35mm castle-type aluminum guide rails)
Outer cuticle	Pre-coated aluminum sheet
Outer cuticle	Pre-coated aluminum sheet
Outer skin material of the floor panel	Thermoplastic sheet
Floor subframe	High-strength steel
Bottom plate drainage hole	Sunhunk standard configuration: 2 units in the front-end or 2 units in each of the front and rear-end systems.

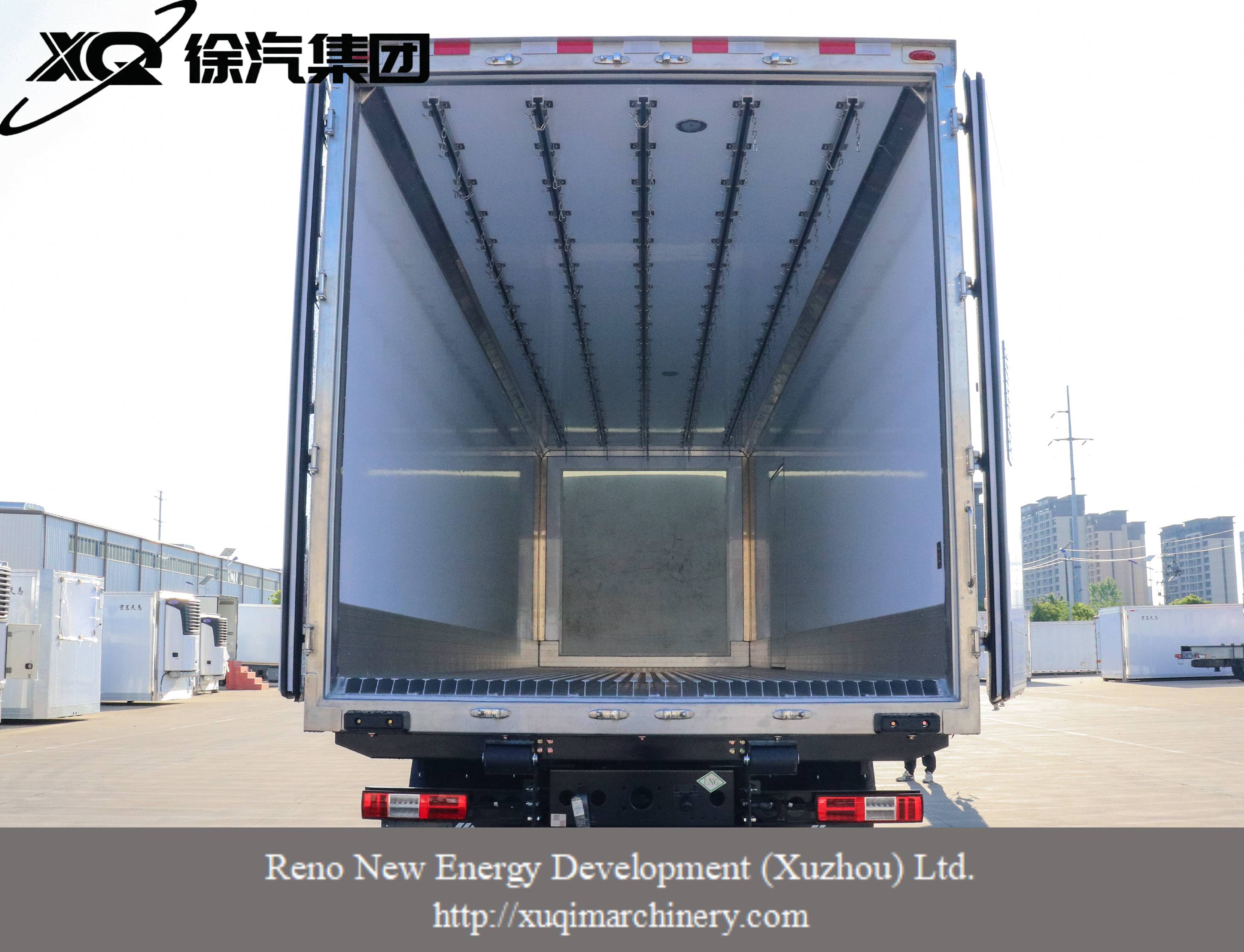

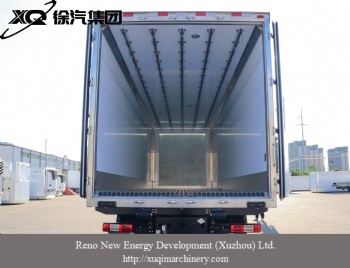

Back door frame and hardware components	304 stainless steel
Wear strip	High-strength aluminum profile (approximately 300mm in height)

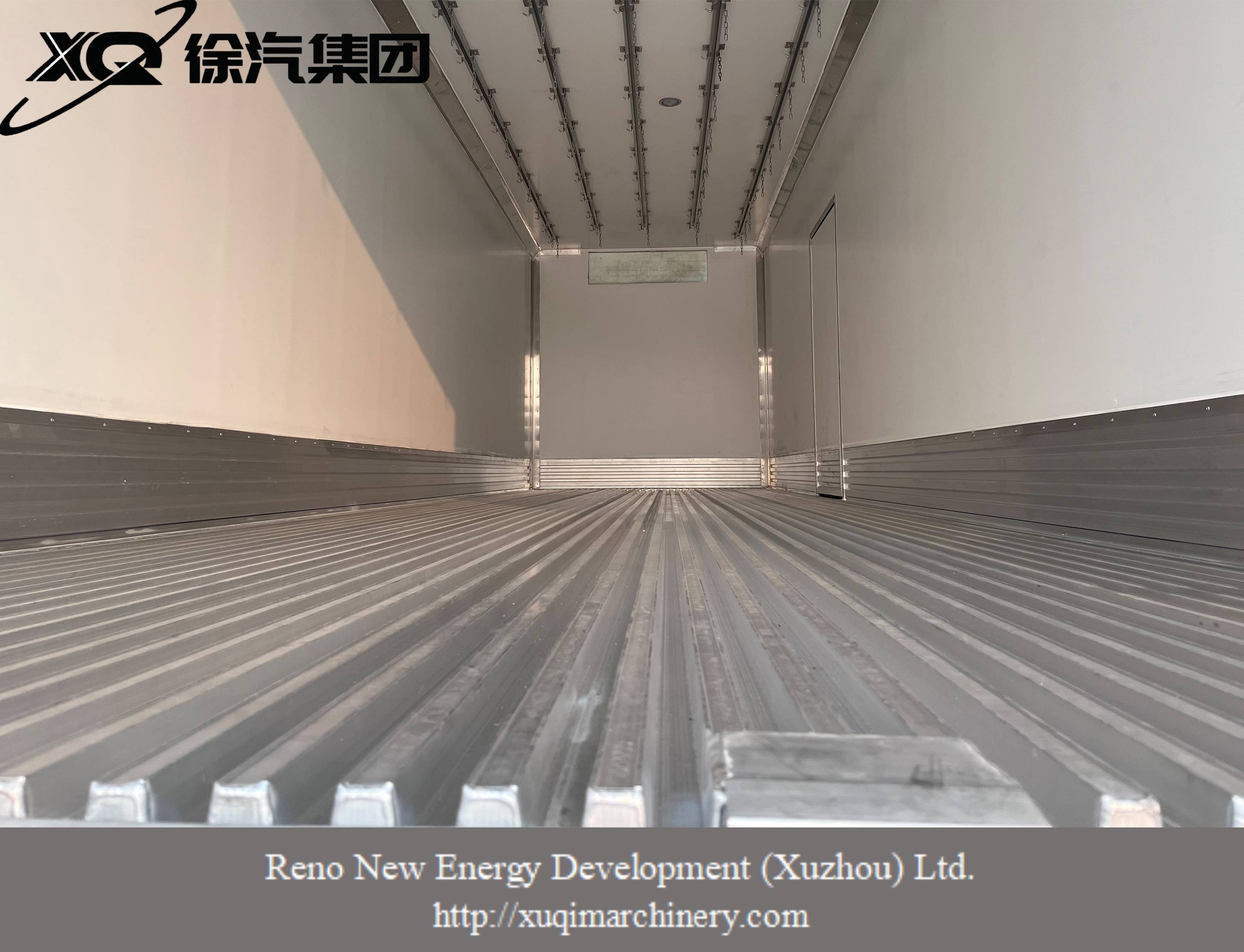

Floor type	Cage-type aluminum guide rail (approximately 35mm)
Medicine curtain	Not have
Medical ventilation structure	Not have
Fatty pad slide	Five slides
Pre-embedded seafood	Not have
