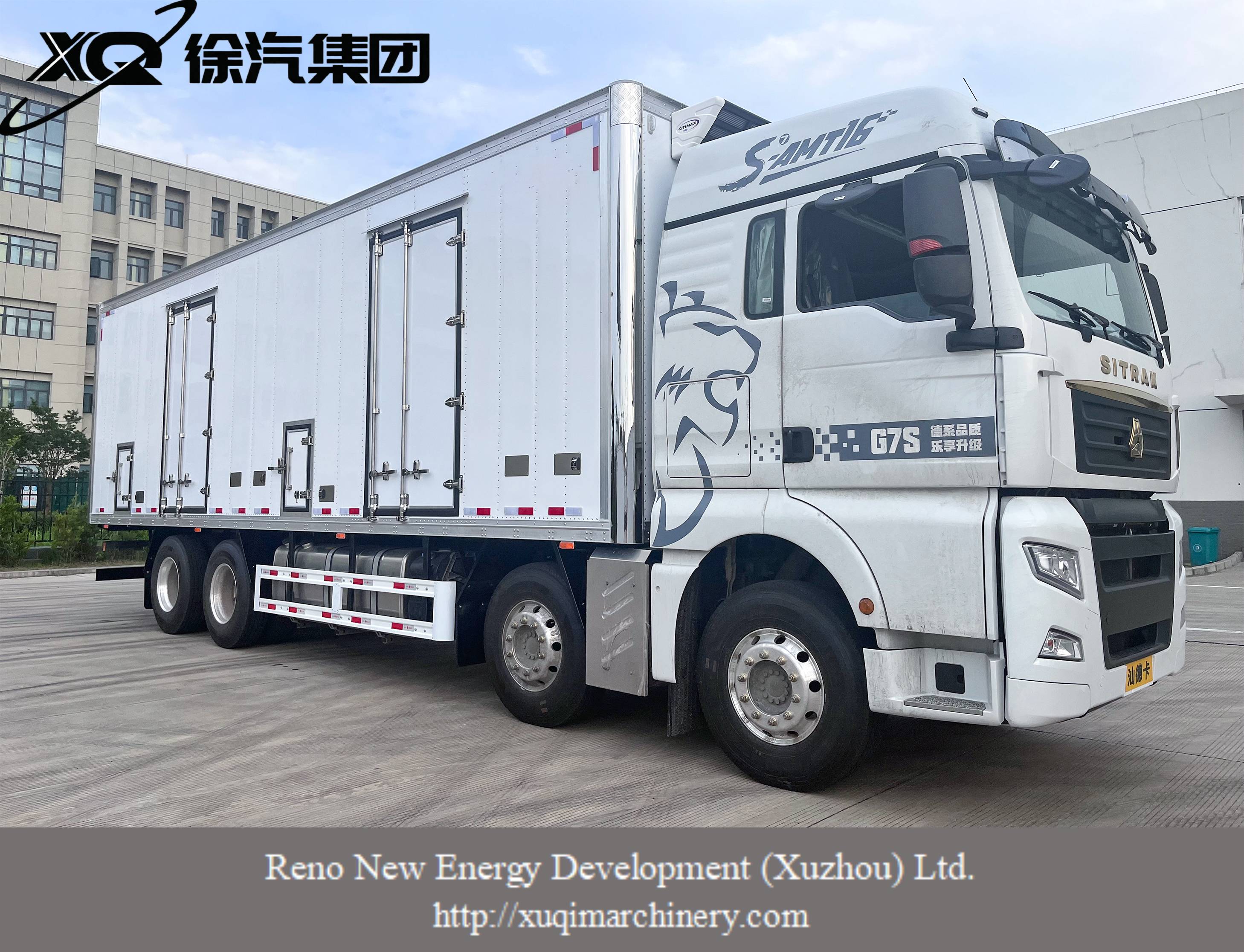

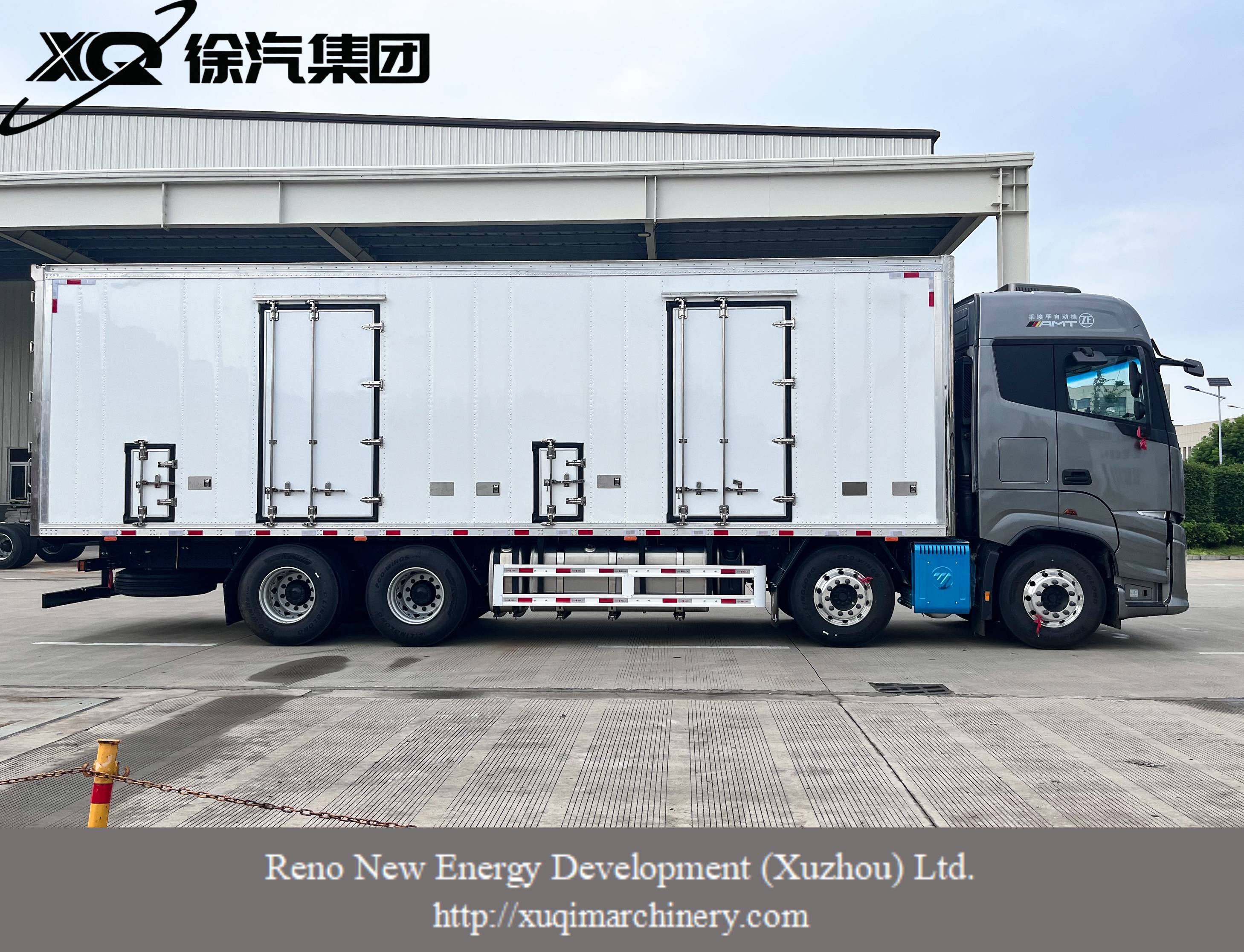

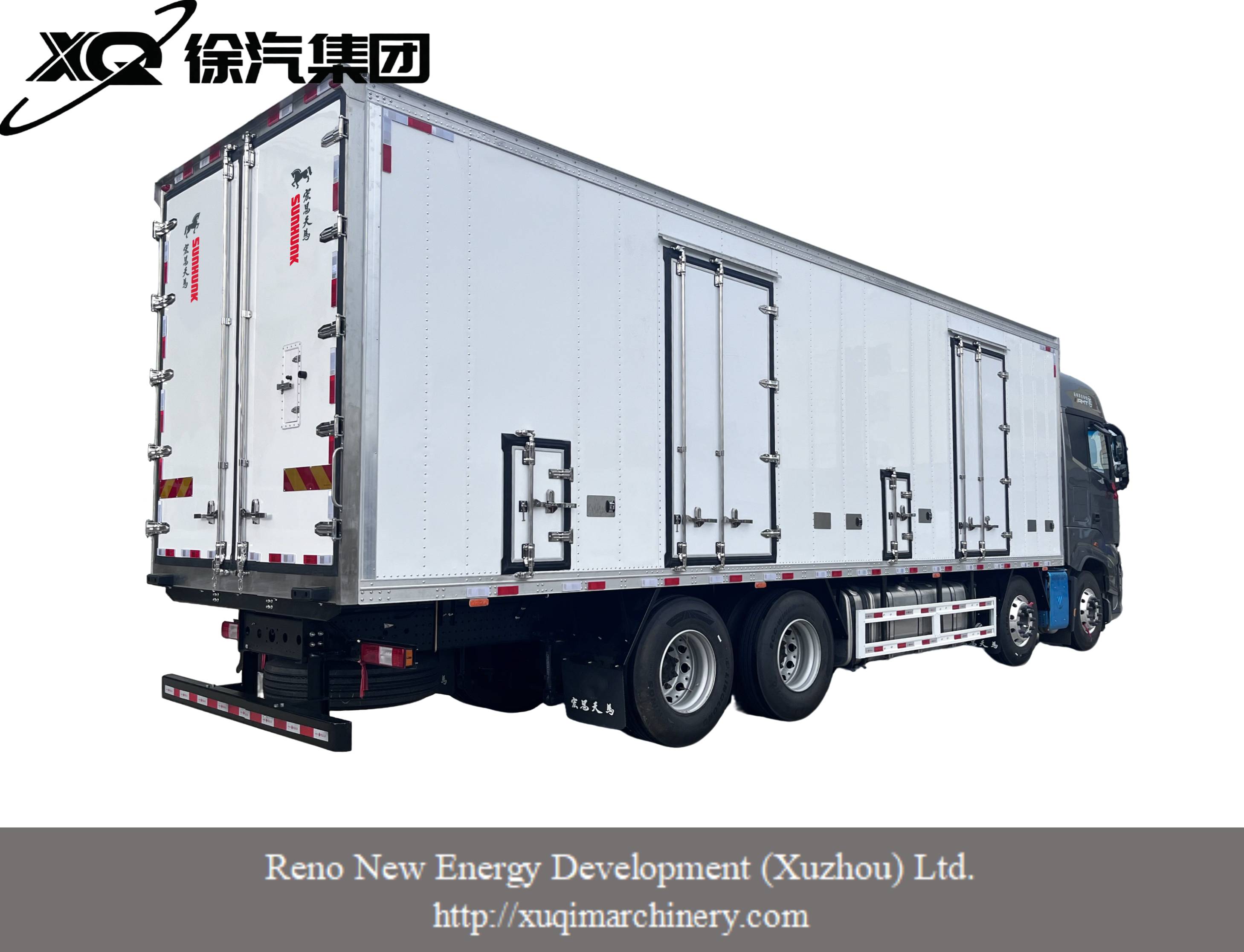

Heavy-duty and medium-sized seafood refrigerated truck

Heavy-Duty Medium Seafood Refrigerated Truck | Food-Grade PU Insulated Van with Oxygen System

Description
Inquiry

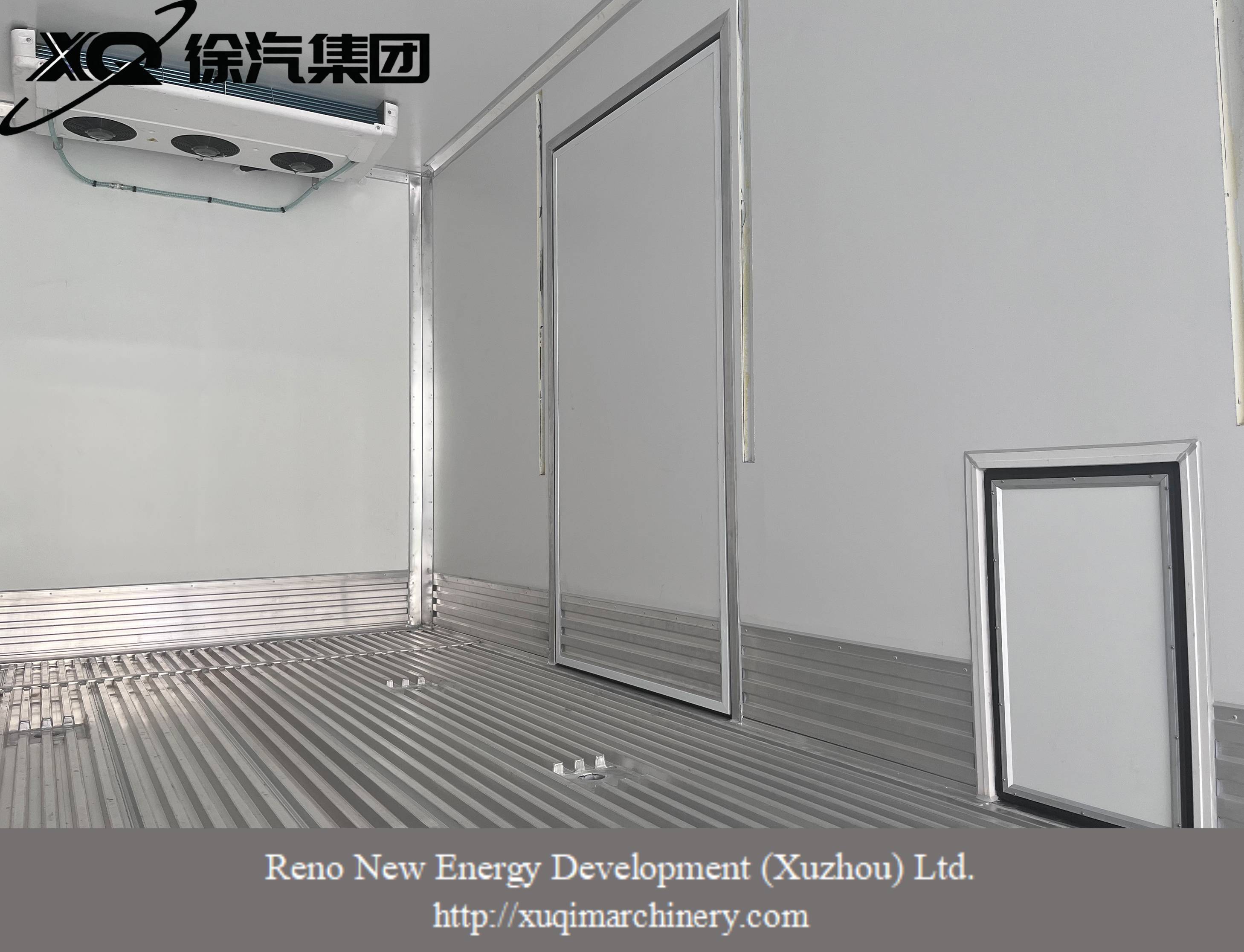

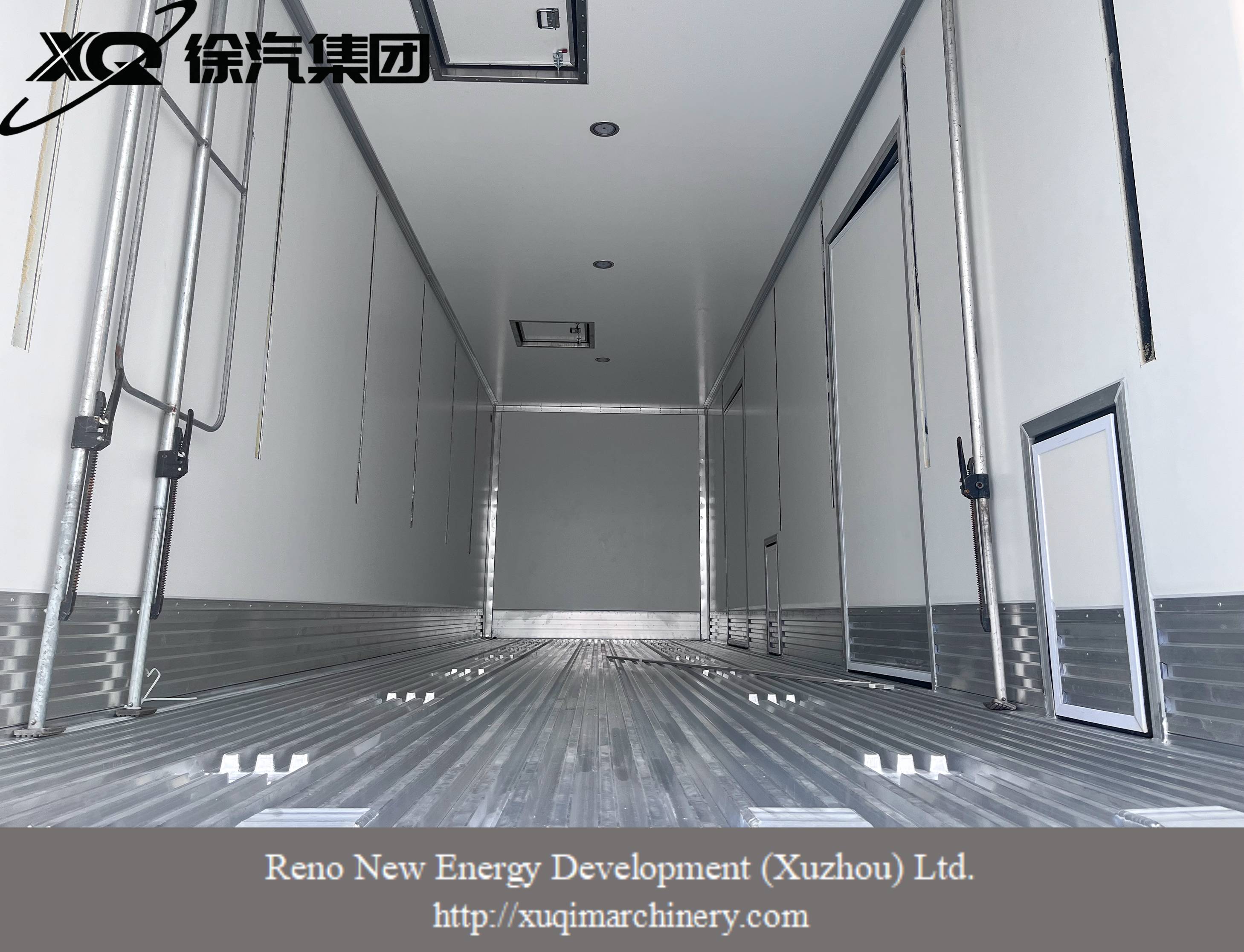

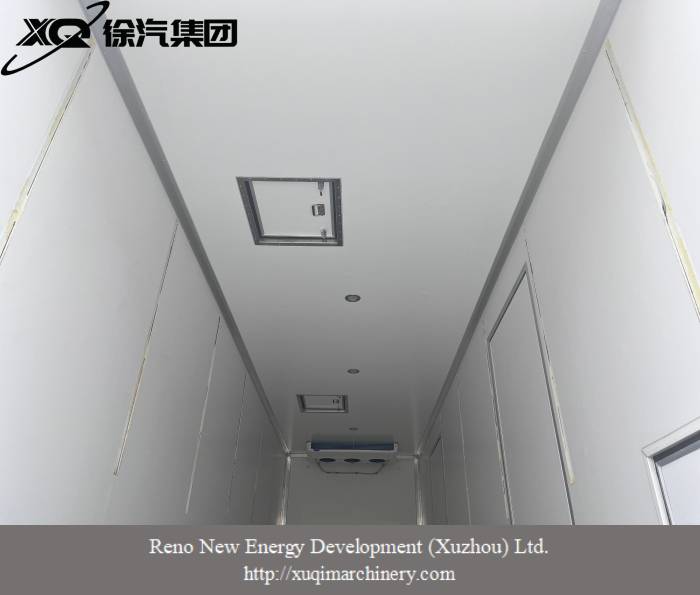

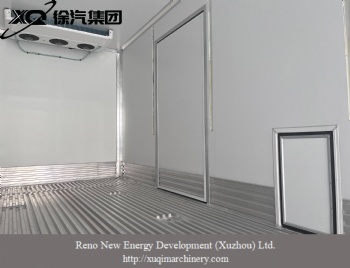

This Heavy-Duty and Medium-sized Seafood Refrigerated Truck is a specialized cold-chain transport solution engineered specifically for the safe and efficient delivery of fresh aquatic products. The cargo body is constructed with food-grade thermoplastic and pre-coated metal sheets, insulated with high-density polyurethane (80mm-100mm thickness) to ensure superior thermal retention and temperature stability.

Key parameter	Parameter values
Process specification	Foaming process
Inner/outer skin material	Food-grade thermoplastic board/pre-coated metal sheet
Insulation layer material	Polyurethane
Vehicle model standard	Medium and heavy-duty seafood refrigerated truck
Insulation board top plate (mm)	80
Insulation board side panel (mm)	80
Insulation board front panel (mm)	80
Back panel of insulation board (mm)	80
Insulation board bottom plate (mm)	100
Outer cuticle	Pre-coated aluminum sheet
Outer skin material of the floor panel	Thermoplastic sheet
Floor subframe	High-strength steel
Bottom plate drainage hole	Two seafood drainage holes each on the front and back ends
Back door frame and hardware components	304 stainless steel
Wear strip	Stainless steel plate, height ≥200mm
Floor type	2mm flat stainless steel plate, rear seafood flow trough
Medicine curtain	Not have
Medical ventilation structure	Not have
Fatty pad slide	Not have
Pre-embedded seafood	Pre-installed oxygen tube
