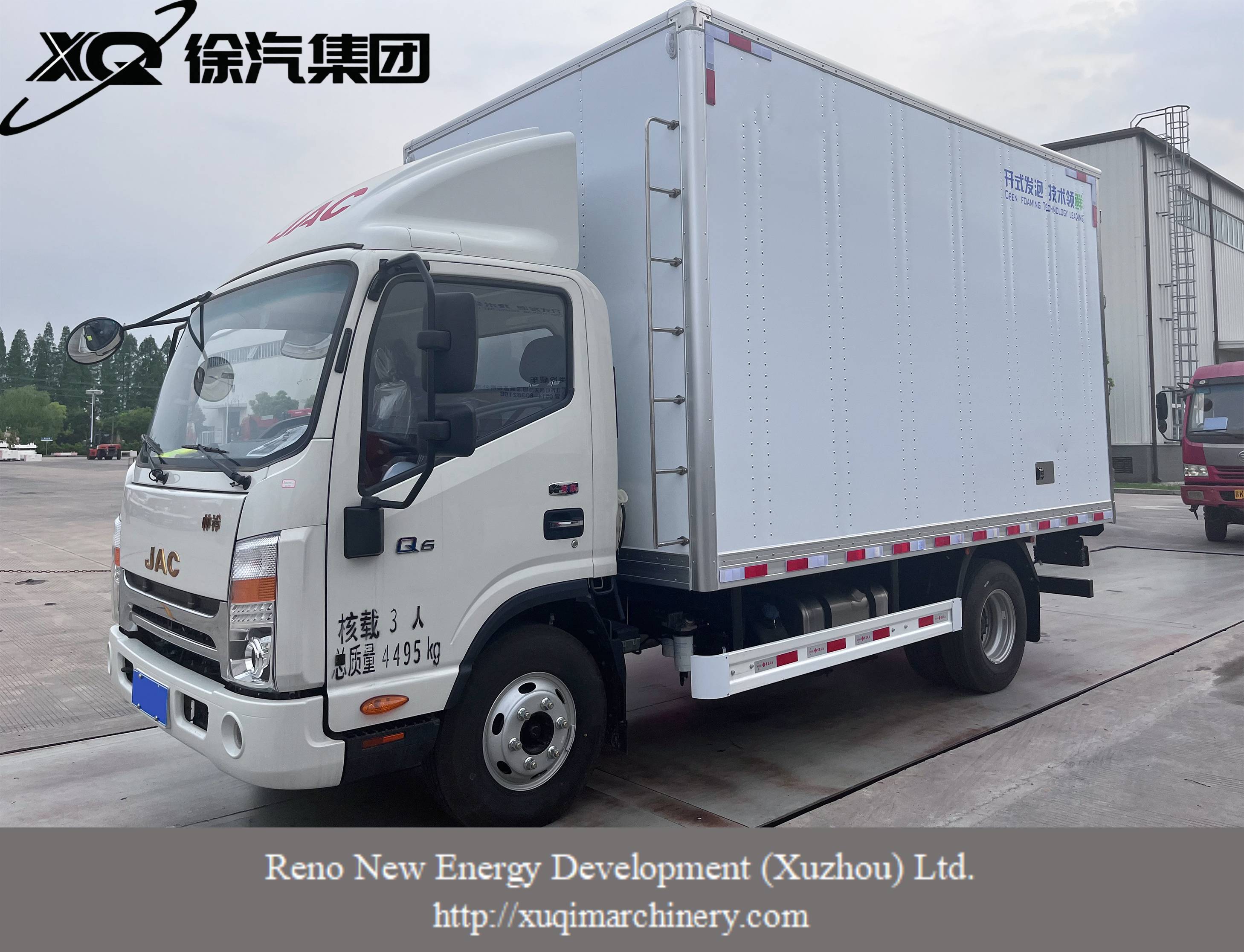

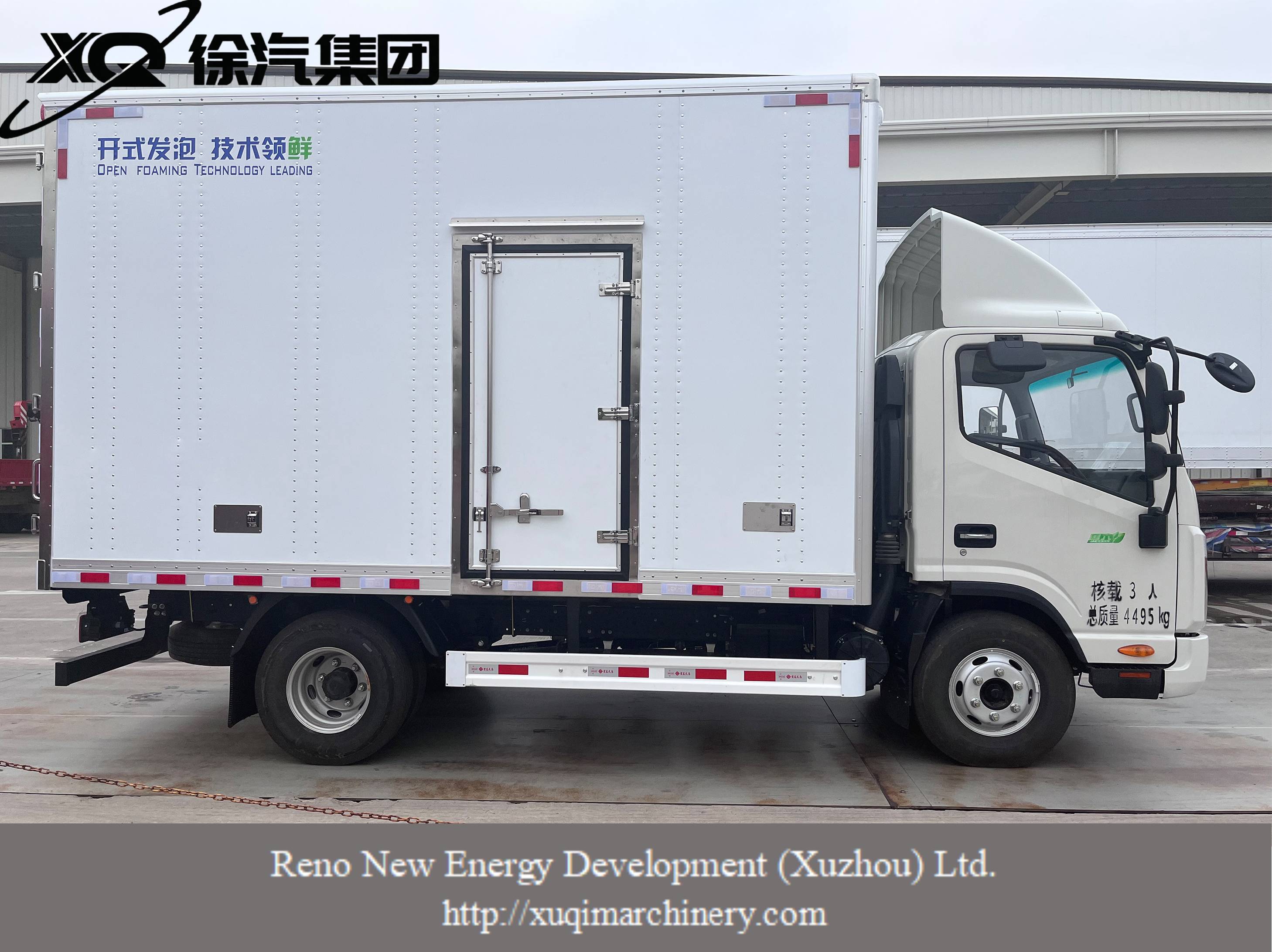

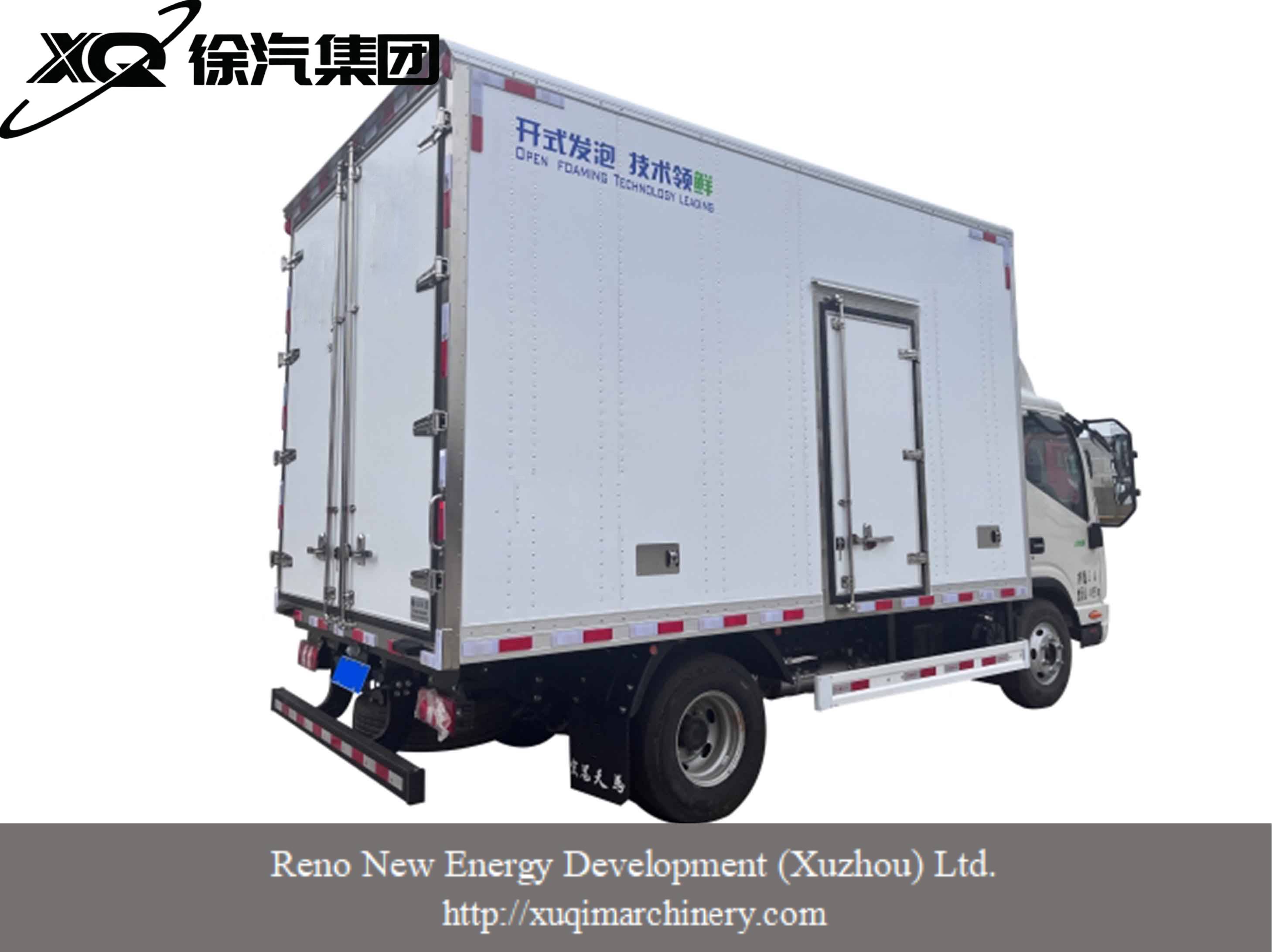

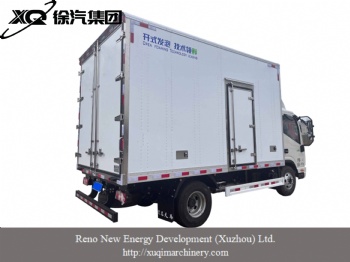

Light-duty meat refrigerated truck

Light-Duty Meat Refrigerated Truck | 4-Slide Meat Transport Van with Stainless Steel Hardware

Description
Inquiry

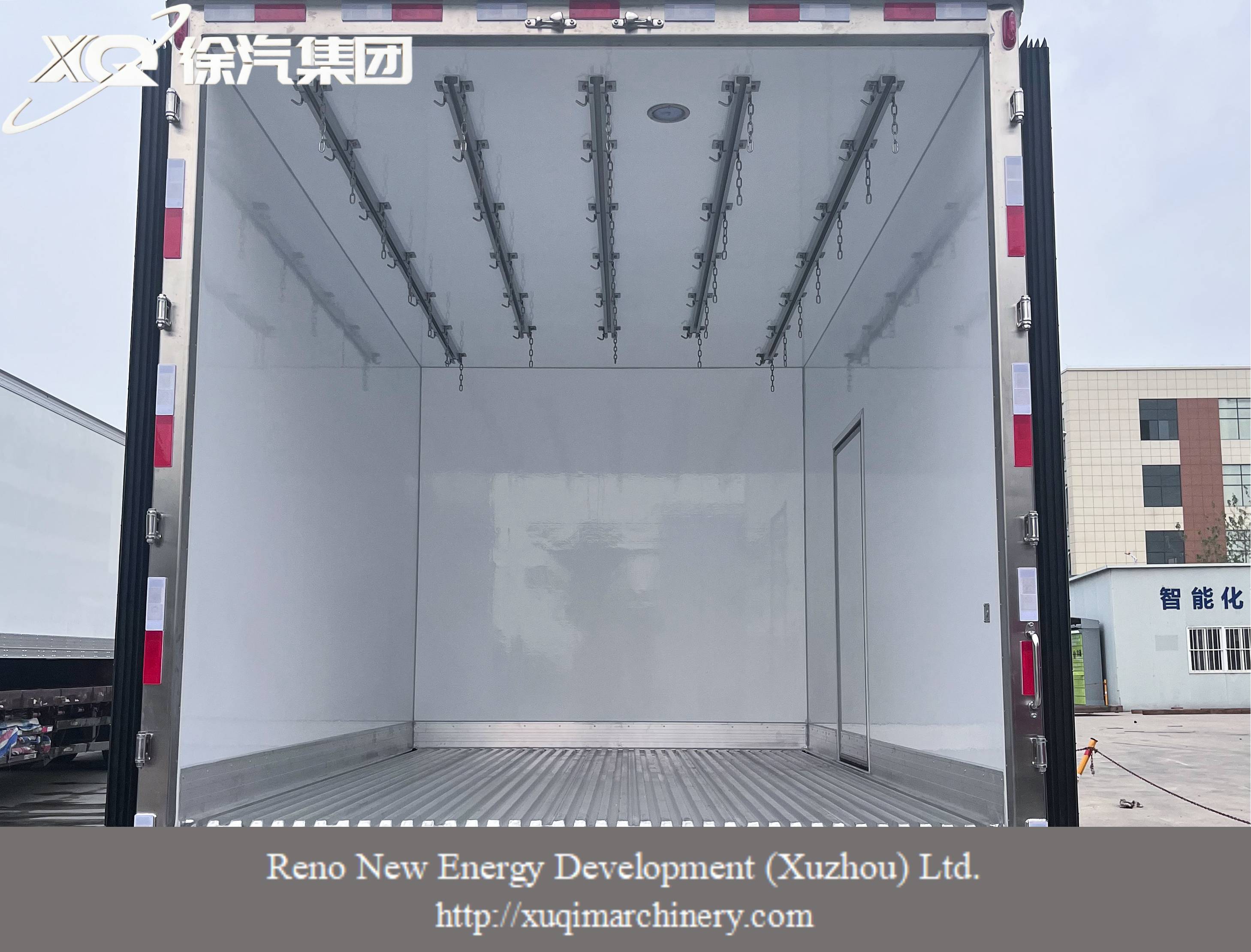

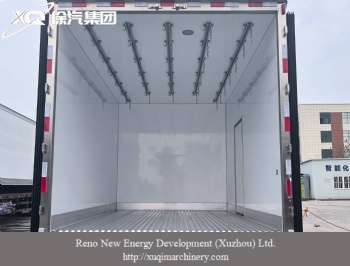

This Light-Duty Meat Refrigerated Truck is a specialized transport solution designed for the efficient and hygienic delivery of fresh meats and frozen products. The cargo body is constructed using food-grade thermoplastic boards and pre-coated metal sheets, insulated with 70mm polyurethane panels to ensure effective thermal retention and temperature stability.

Key parameter	Parameter values
Process specification	Foaming process
Inner/outer skin material	Food-grade thermoplastic board/pre-coated metal sheet
Insulation layer material	Polyurethane
Vehicle model standard	Light truck with meat refrigeration trailer
Insulation board top plate (mm)	70
Insulation board side panel (mm)	70
Insulation board front panel (mm)	70
Back panel of insulation board (mm)	70
Insulation board bottom plate (mm)	95 (including 25mm castle-type aluminum guide rail)
Outer skin material of the floor panel	Thermoplastic sheet
Floor subframe	Flat corrugated floor (approximately 25mm)
Bottom plate drainage hole	Sunhunk standard configuration: 2 units in the front-end or 2 units in each of the front and rear-end systems.
Back door frame and hardware components	304 stainless steel
Wear strip	High-strength aluminum profile (approximately 150mm in height)
Floor type	Cage-type aluminum guide rail (approximately 25mm)
Medicine curtain	Not have
Medical ventilation structure	Not have
Fatty pad slide	Four slides
Pre-embedded seafood	Not have
