Light-duty seafood refrigerated truck

Light-Duty Seafood Refrigerated Truck | Live Fish Transport Van with Oxygen System & Stainless Floor

Description
Inquiry

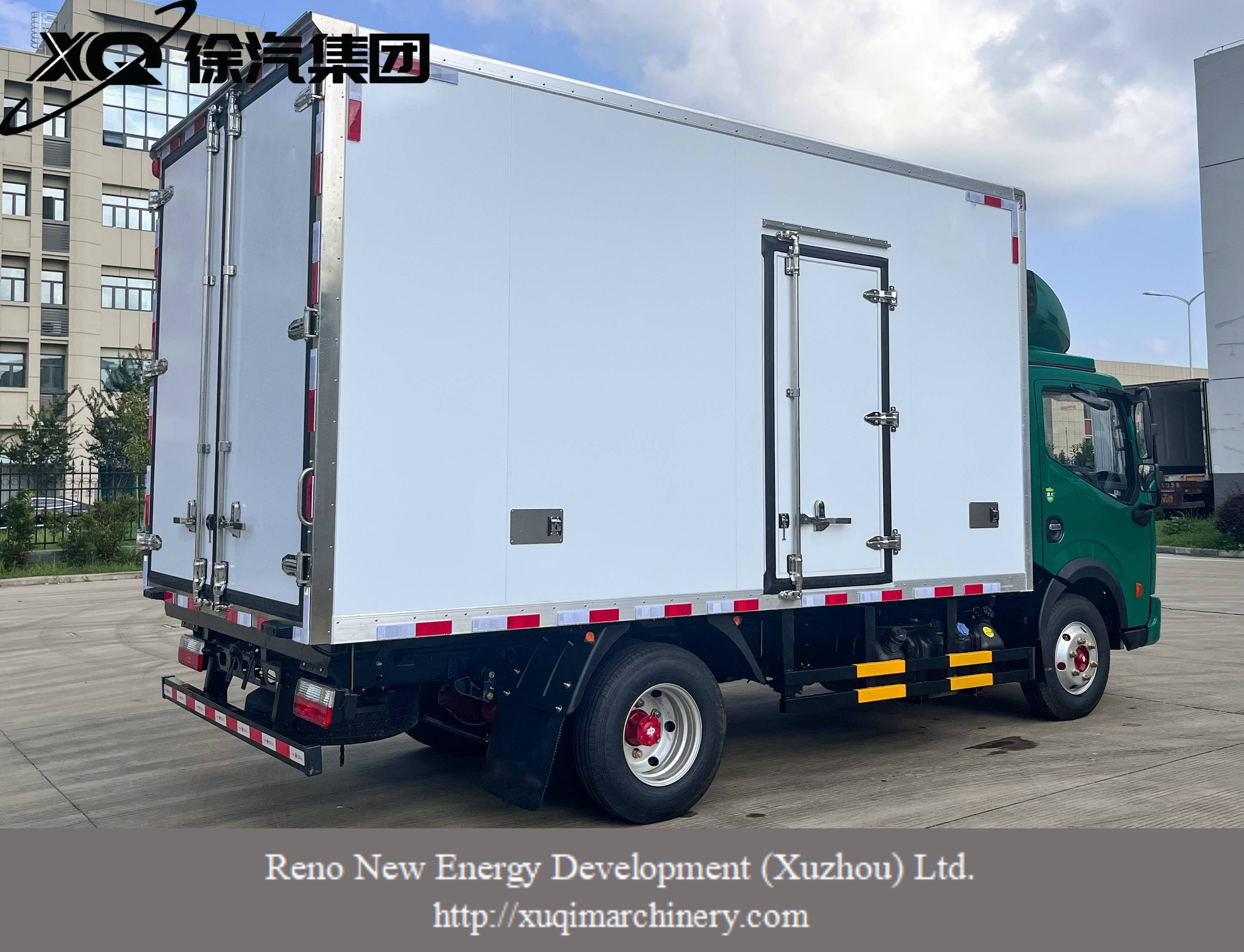

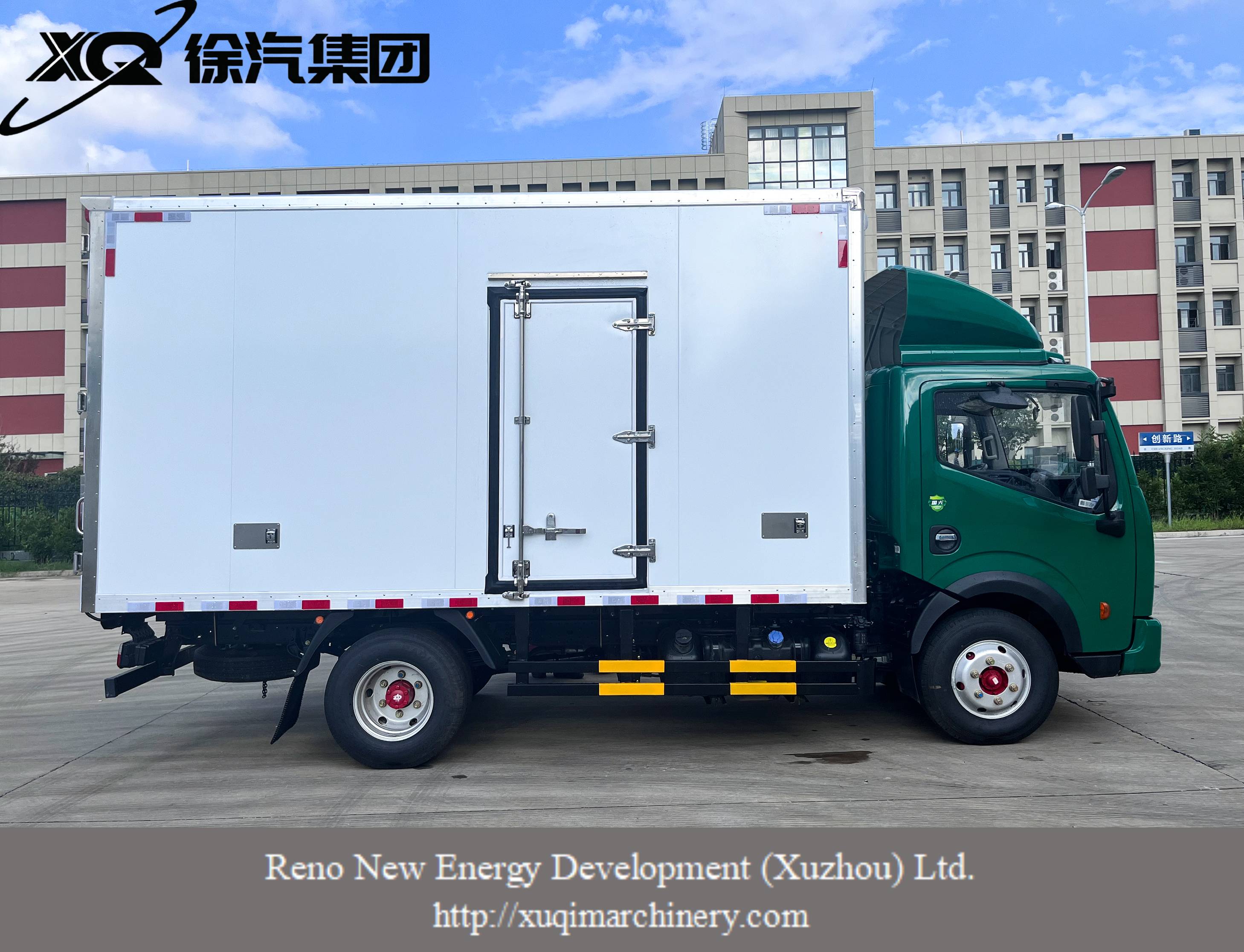

This Light-Duty Seafood Refrigerated Truck is a specialized cold-chain transport solution engineered specifically for the safe and efficient delivery of fresh and live aquatic products. The cargo body is constructed with food-grade thermoplastic boards and pre-coated metal sheets, insulated with high-density polyurethane (70mm-80mm thickness) to ensure superior thermal retention and temperature stability.

Key parameter	Parameter values
Process specification	Foaming process
Inner/outer skin material	Food-grade thermoplastic board/pre-coated metal sheet
Insulation layer material	Polyurethane
Vehicle model standard	Light-duty seafood refrigerated truck
Insulation board top plate (mm)	70
Insulation board side panel (mm)	70
Insulation board front panel (mm)	70
Back panel of insulation board (mm)	70
Insulation board bottom plate (mm)	80
Outer skin material of the floor panel	Thermoplastic sheet
Floor subframe	High-strength steel
Bottom plate drainage hole	Two seafood drainage holes each on the front and back ends
Back door frame and hardware components	304 stainless steel
Wear strip	Stainless steel plate, height ≥150mm

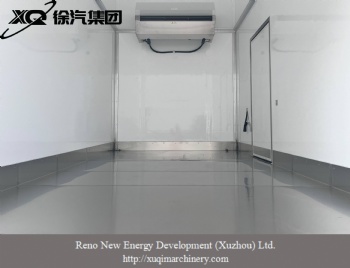

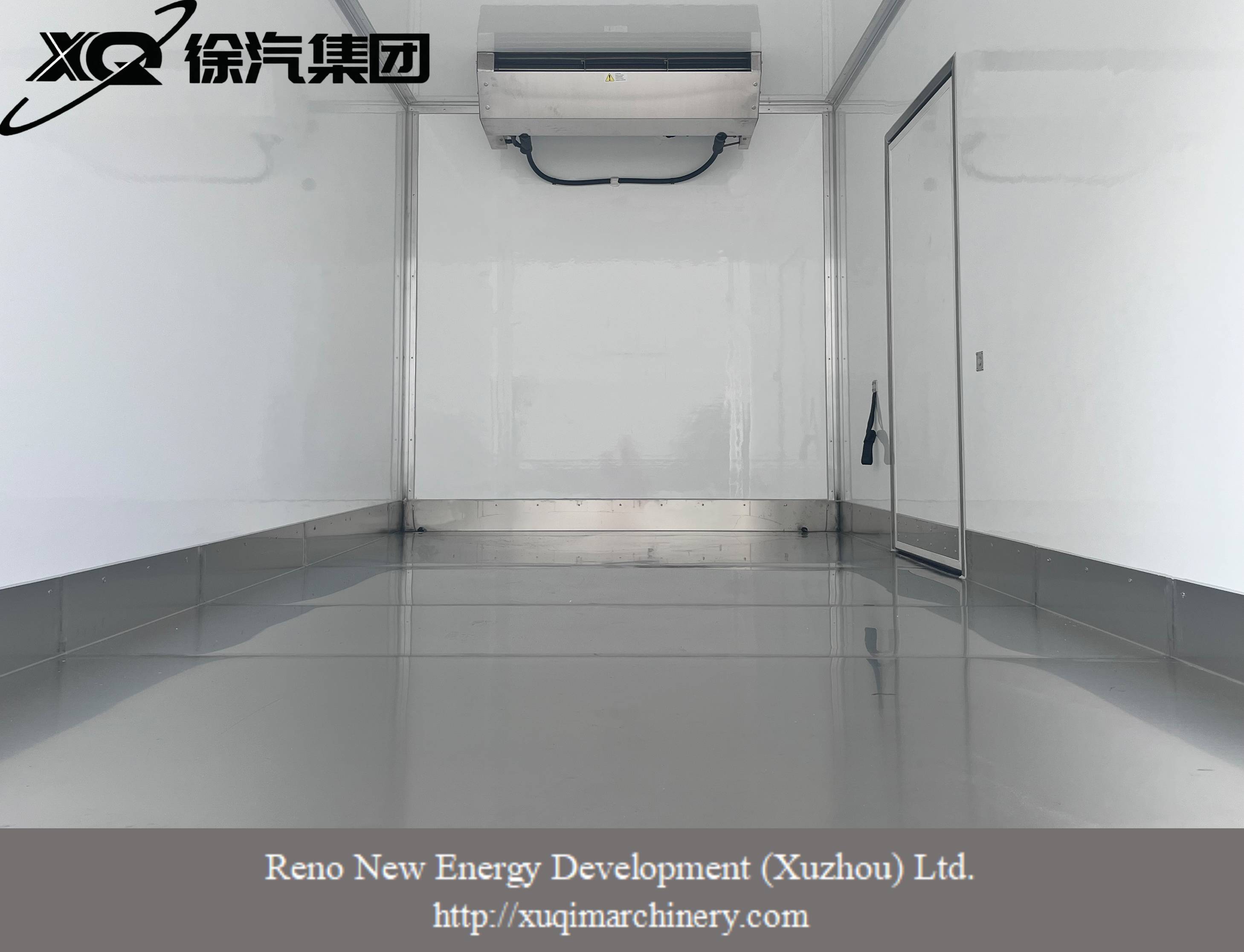

Floor type	2mm flat stainless steel plate
Medicine curtain	Not have
Medical ventilation structure	Not have
Fatty pad slide	Not have
Pre-embedded seafood	Pre-installed oxygen tube
