3L Hanging Meat Refrigerated Truck

3L Hanging Meat Refrigerated Truck | Heavy-Duty Carcass Transport Van (84-89.5m³)

Description
Inquiry

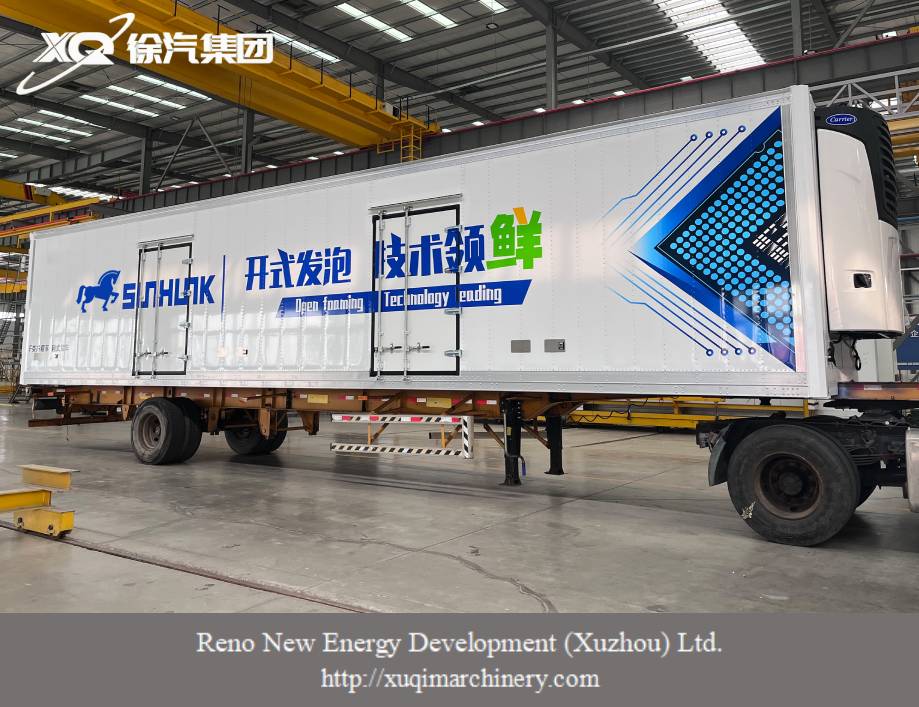

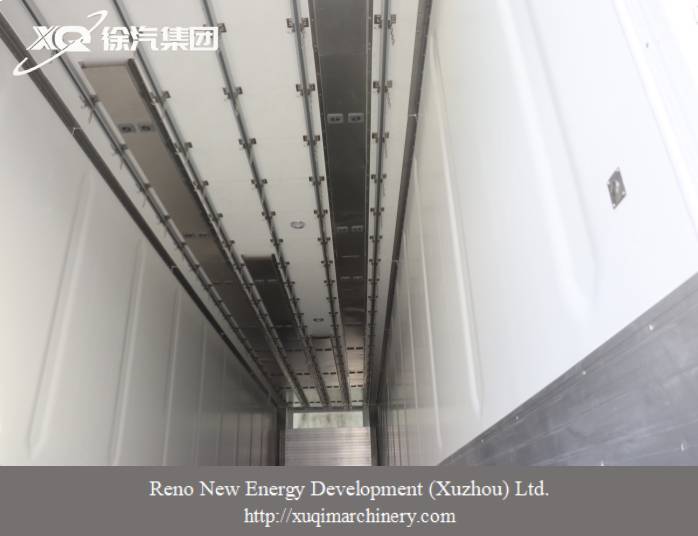

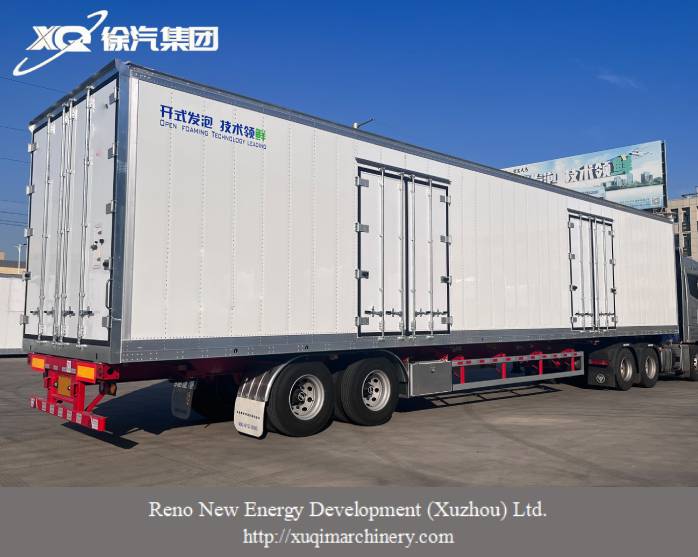

The 3L Hanging Meat Refrigerated Truck is a specialized heavy-duty transport solution engineered for the efficient and hygienic delivery of suspended meat products. Built on a robust 3-liter chassis, this vehicle features a spacious cargo body with a theoretical internal volume of 84 to 89.5 cubic meters. The container is constructed using food-grade thermoplastic boards and pre-coated aluminum sheets, insulated with high-density polyurethane (100mm top/front, 80mm rear) to ensure superior thermal retention for long-haul journeys.

Key parameter	Parameter values
Process specification	Foaming process
Inner/outer skin material	Food-grade thermoplastic board/pre-coated aluminum sheet
Insulation layer material	Polyurethane
Vehicle model standard	3l meat refrigeration container
Overall length （mm）	13716/14630
Overall bandwidth （mm）	2550/2550
Total height （mm）	2896/2896
Inner length (mm, from inner skin to inner skin)	13536/14450
Inner width (mm, from inner skin to inner skin)	2396/2396
Inner height (mm, from the aluminum profile to the inner mongolia skin)	2580/2580
Internal volume (m3) (theoretical)	84/89.5
Insulation board top plate (mm)	100
Insulation board side panel (mm)	70
Insulation board front panel (mm)	100
Back panel of insulation board (mm)	80
Insulation board bottom plate (mm)	200 (35mm castle-type flooring)
Outer cuticle	Pre-coated aluminum sheet
Outer skin material of the floor panel	Thermoplastic sheet
Internal form of the base plate	High-strength t6-class castle-type ventilated aluminum floor (approximately 35mm thick)
Wear strip	High-strength aluminum profile (approximately 300mm in height)
Bottom plate drainage hole	Sunhunk standard configuration: Two units each at the front and rear
