W01 Double-row Dump Truck

Double-row Dump Truck XR-W01

XR-W01 4KW Double-Row Dump Truck | 5-Seater 1 Ton Electric Utility Vehicle | 72V Rear-Wheel Drive

Description
Inquiry

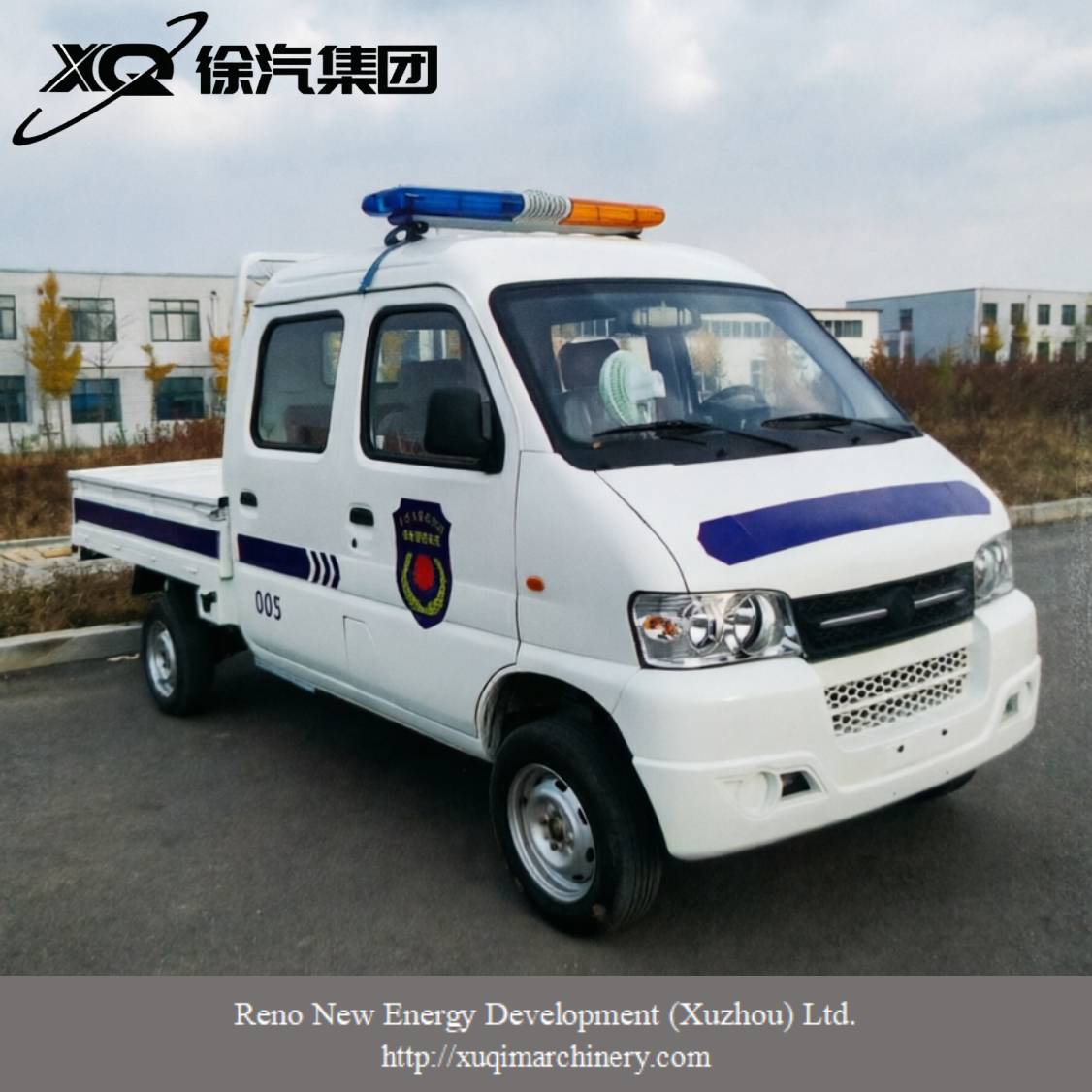

The XR-W01 Double-row Dump Truck is a robust electric utility vehicle designed for construction sites, mining operations, and heavy-duty material transport. Featuring a spacious 5-seater automotive process cockpit, it allows for the simultaneous transport of crew and cargo. Powered by a 4KW AC traction motor with a 72V system, this dump truck delivers a maximum speed of 42KM/H and a 1-ton load-bearing capacity, capable of handling gradients up to 25%.

Electrical system	Drive-by-wire	Ac control
	Cell	Optional
	Any power-generating or power-driven machine	Ac traction motor
	Charging generator	Based on battery options
	Charging interval	8-10 hours (discharge rate of 90%)
Technical parameter	Rated crew	5 people	System voltage	72v
	Lengthwidthheight ≧	460016002100	Power of motor	4kw
		(trunk dimensions: 20001600330 mm)	Charging interval	(8-10)h
	Warm braw	Electronic heating air	Load-bearing capacity/traction force	1 ton
	Maximum speed	42km/h	Doors and windows	Manual lifting
	Minimum turning radius	6.5m	Stop a vehicle by applying the brake	Electronic assistance
	Maximum gradability	25%	Wheel base	2860
	Braking length	≦4m	Tread	1400/1420
Configure	Seat	Cold foam sponge + high-rebound fabric for automobiles
	Car body	Automotive process cockpit
	Car door	Removable and adjustable glass car door
	Appearance	Digital lcd instrument panel (including voltage, vehicle speed, mileage, lighting, front/rear turn signals, etc.)
	Rearview mirror	Manual external rearview mirror
	Lighting and signaling	Combined headlight assembly. Combined taillight assembly. Electric horn.
	Sound	Mobile mp3 player with professional speakers
	Forward mounting	Macpherson independent suspension
	Drive mode	Mid-engine, rear-wheel drive (4x2)
	Drive system	Stepless speed control system
	Steering system	Automotive steering column, gear rack type steering mechanism
	Rear axle	Spring plate suspension + monocoque reinforced rear axle with 70mm rear axle and 207mm bearings
	Brake assembly	Front disc and rear drum brakes. Dual-circuit hydraulic braking system. Parking brake device with electronic vacuum assist.
	Tyre	Automotive vacuum radial tire 165-70-r13
	Hub	Wide-gauge steel wheel rim for automobiles
	Optional	Air conditioning, power steering, range extender, color, hazard lights, battery, payload
