Battery Swapping Cabinet

Automatically detect battery voltage
Locate and prevent theft of the battery
Overcharge, over-discharge and overcurrent protection when fully charged.
Fan automatically exhausts air for cooling.
Overheating causes power-off + warning notification.
Intelligent fire prevention + phone notification
Merchant account for receiving payments, connect to designated account
5-second rapid battery replacement
Remote control, cloud detection
Support offline battery replacement

Description
Inquiry

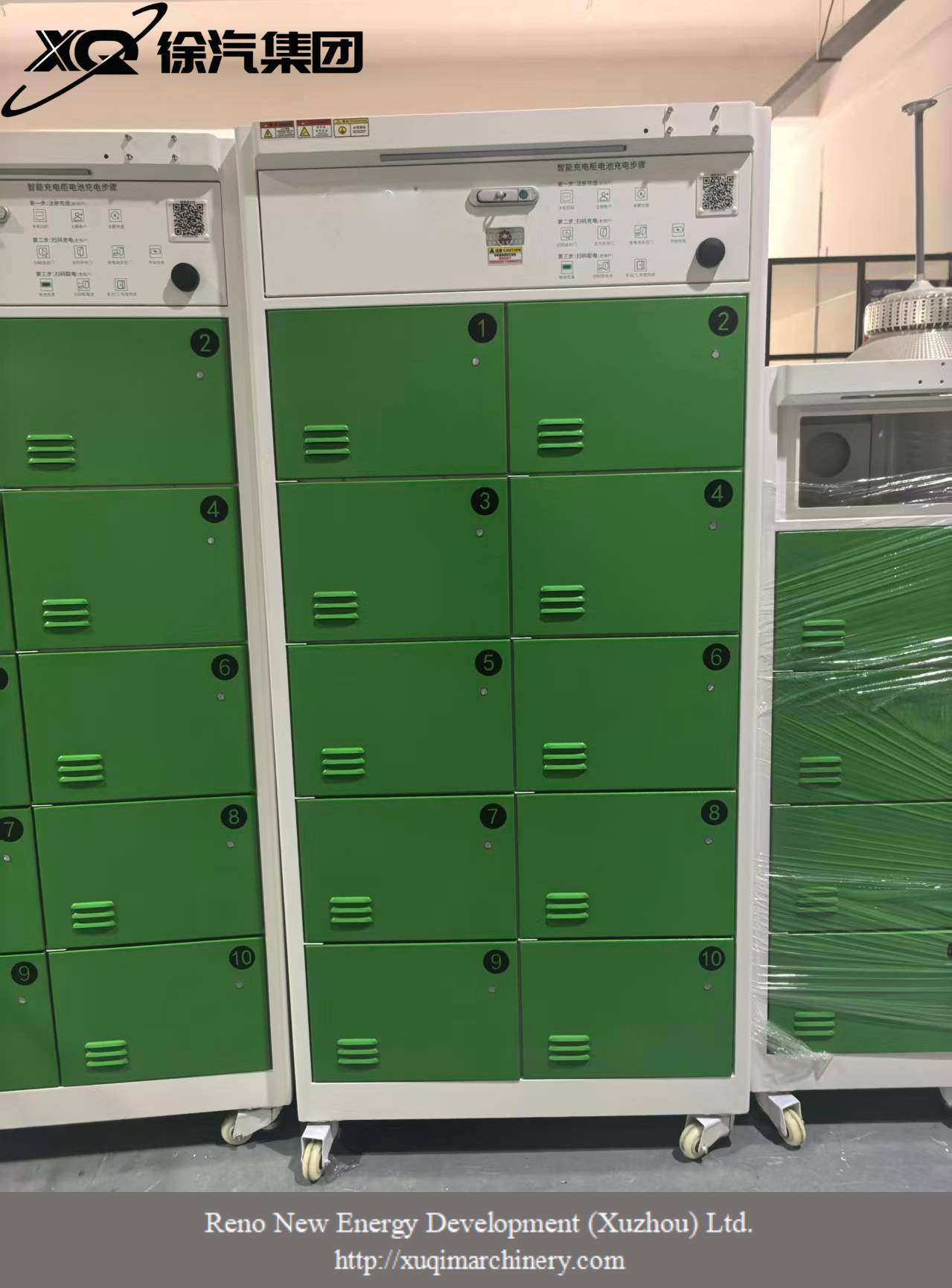

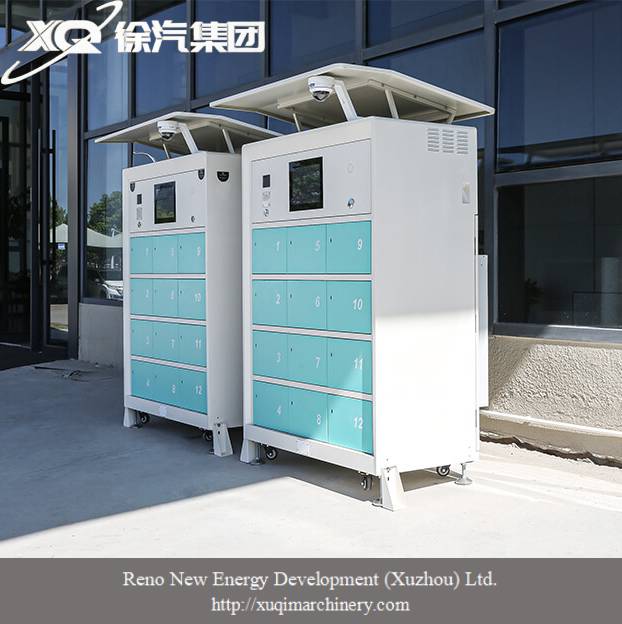

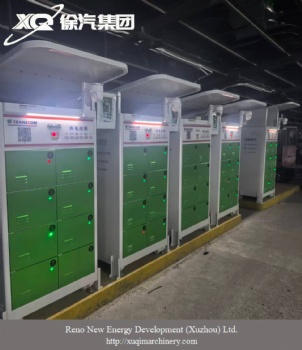

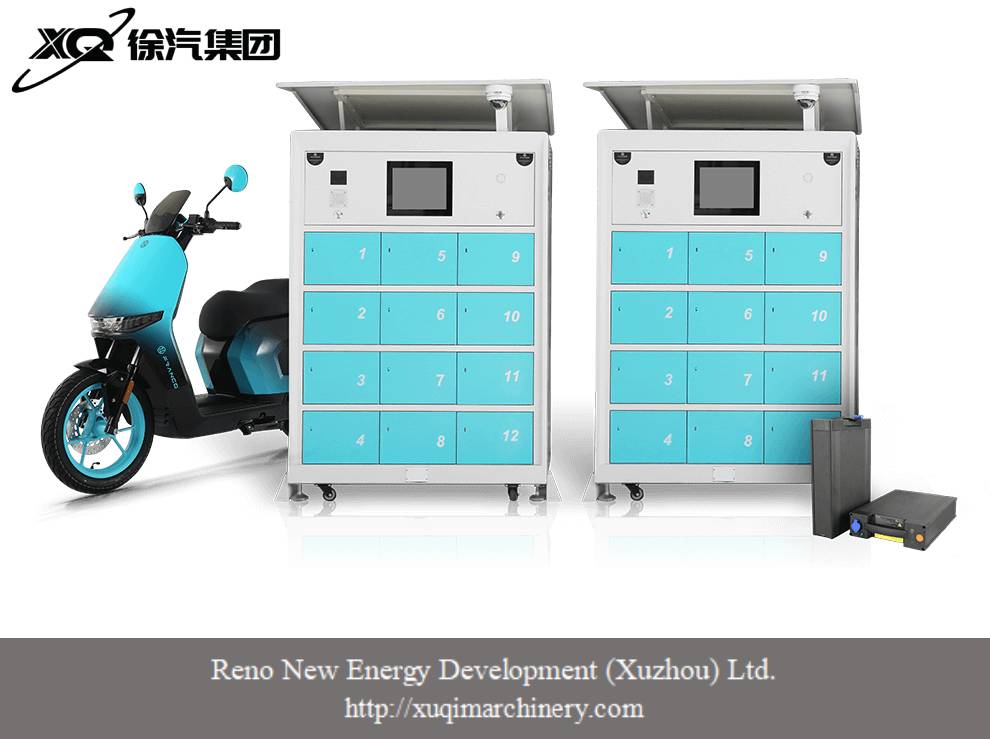

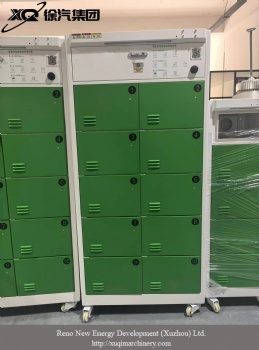

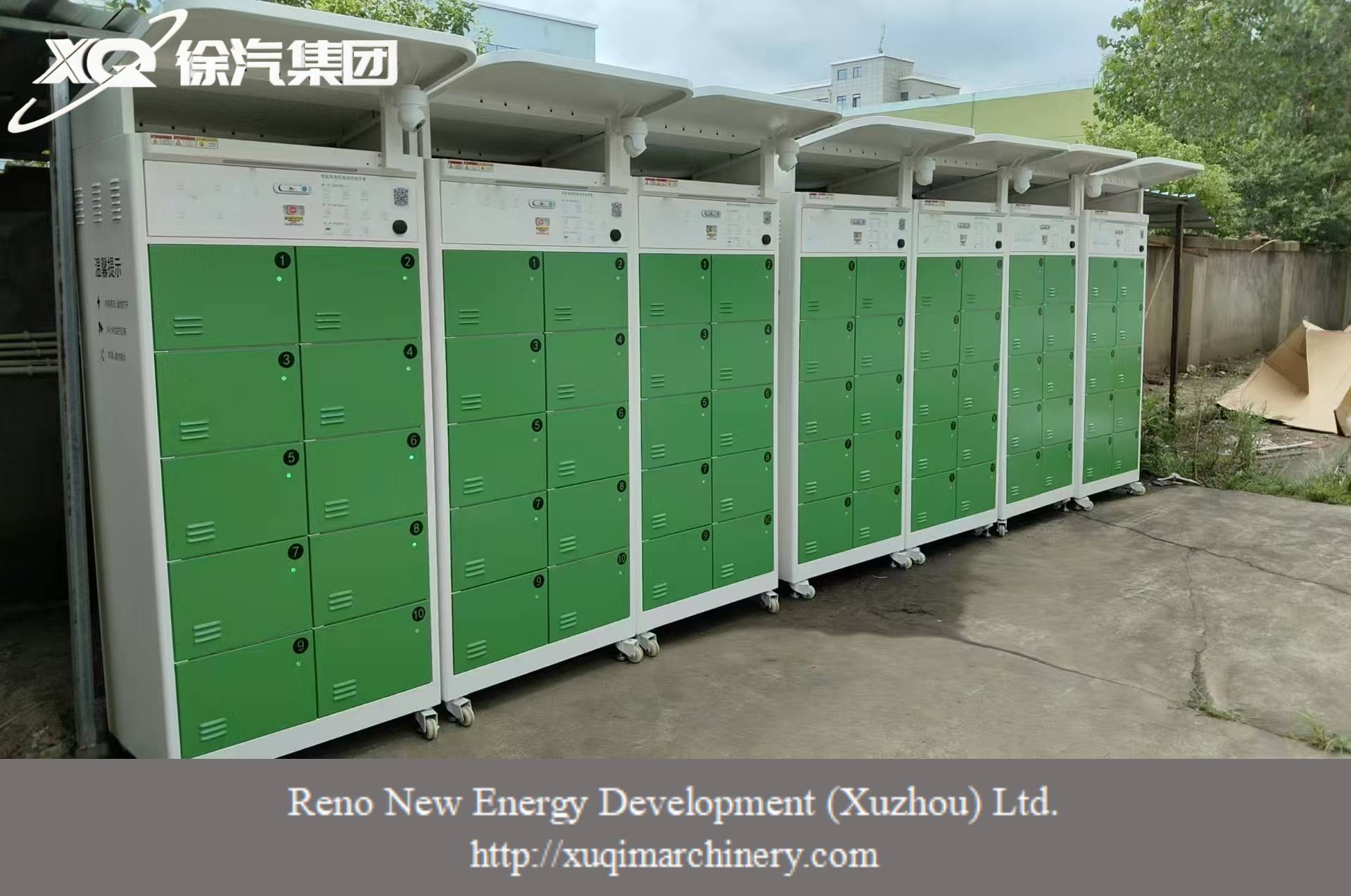

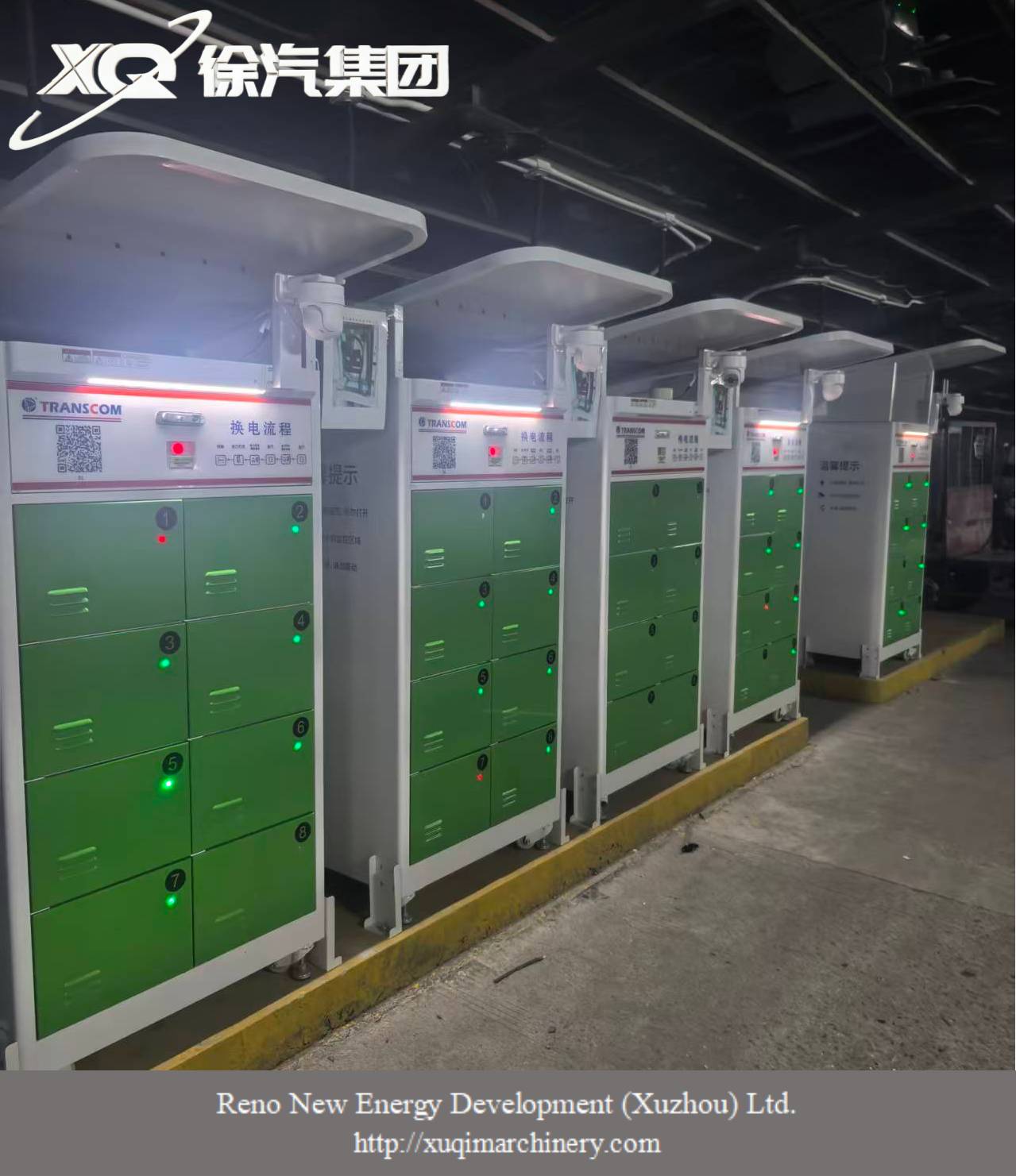

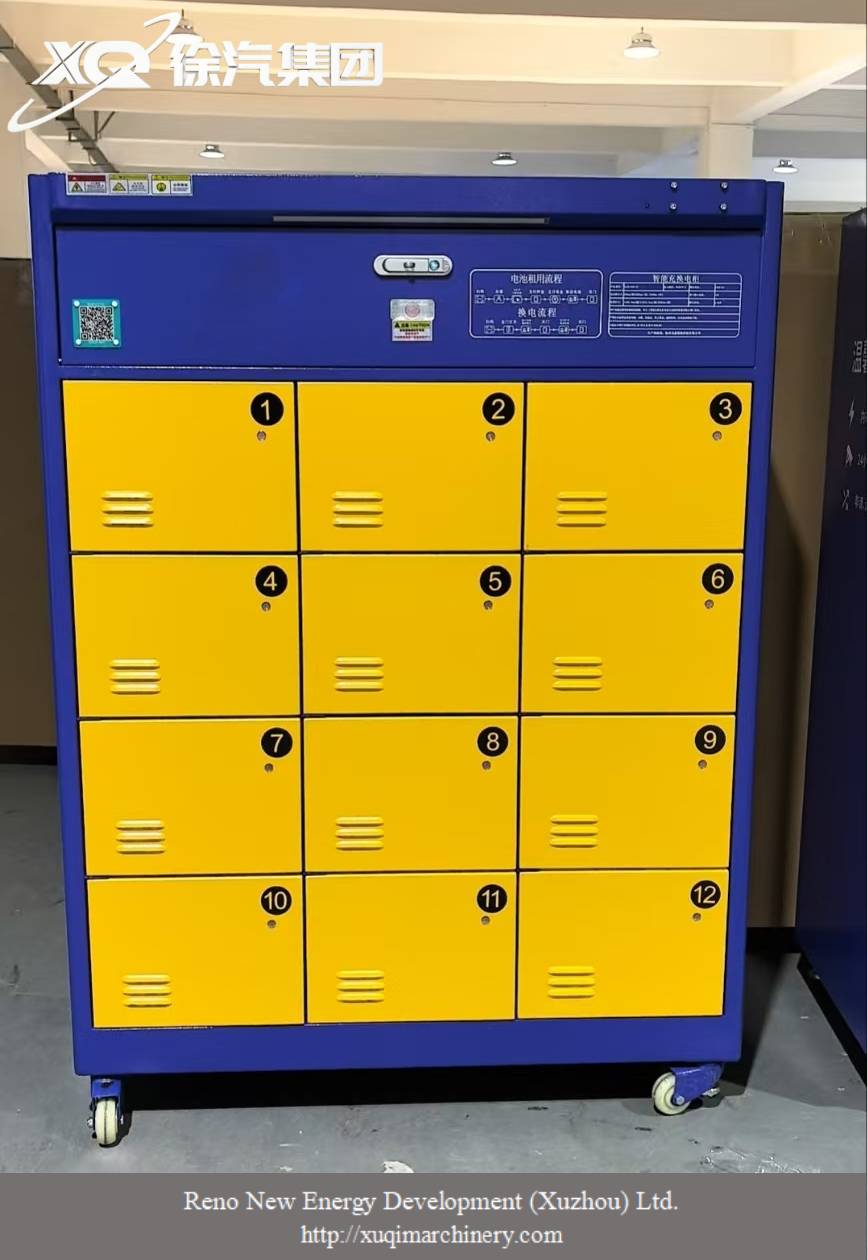

This Smart Battery Swapping Cabinet is a high-efficiency solution designed for 24/7 automated battery management. Available in 8-bay and 12-bay configurations, it supports a wide voltage range (24V-96V) and features automatic voltage detection. The system ensures maximum safety with intelligent fire prevention, overheating power-off warnings, and comprehensive overcharge/overcurrent protection. Security is enhanced by built-in GPS tracking to locate and prevent battery theft.

Type	8 battery charging/swapping cabinet	12-bay battery charging/ swapping cabinet
Net internal clearance dimensions of the silo opening	310 mm × 250 mm × 420 mm (width × height × depth)
Input voltage	220v-235v
Single-cell output current	0.1a-4a
Maximum load current of the entire unit	40a	60a
Charging output range	24v-96v
Single-warehouse power	750w/1500w available
Total machine power	6kw	12kw
Material of the panel	Galvanized steel plain sheet
Surface preparation	Spray painting process (outdoor powder)
Working temperature	-20℃-60℃
Relative humidity	10%-90%
Altitude requirement	<2000m
Plate thickness	1.2mm
Door opening angle	>95°
Single warehouse load capacity	40kg
The top panel of the cabinet is load-bearing.	100kg
Gate lock	Equipped with a top-bar electromagnetic door lock to ensure smooth door operation, with a design life of 5,000 cycles per door.
Single warehouse slider	The single compartment is equipped with two pp sliding strips to prevent battery wear.
In-warehouse lighting	The single storage compartment is equipped with led lighting.
Work indicator light	Each storage compartment is equipped with an led dual-color indicator light, displaying red and blue colors.
Independent charging control for a single warehouse	Each storage unit is independently equipped with a charging pad card.
Communication board	The device comes with a 4g communication card, providing one year of data coverage.
