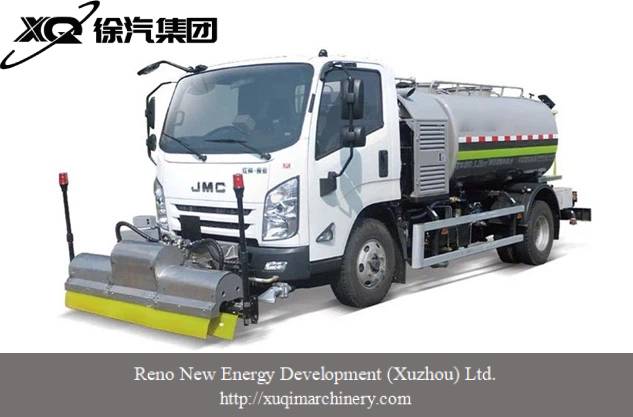

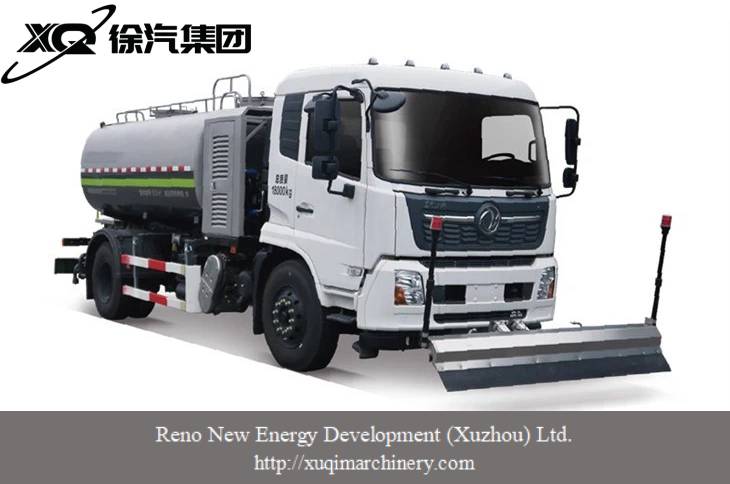

High-pressure water tanker YF

High pressure water tanker YF

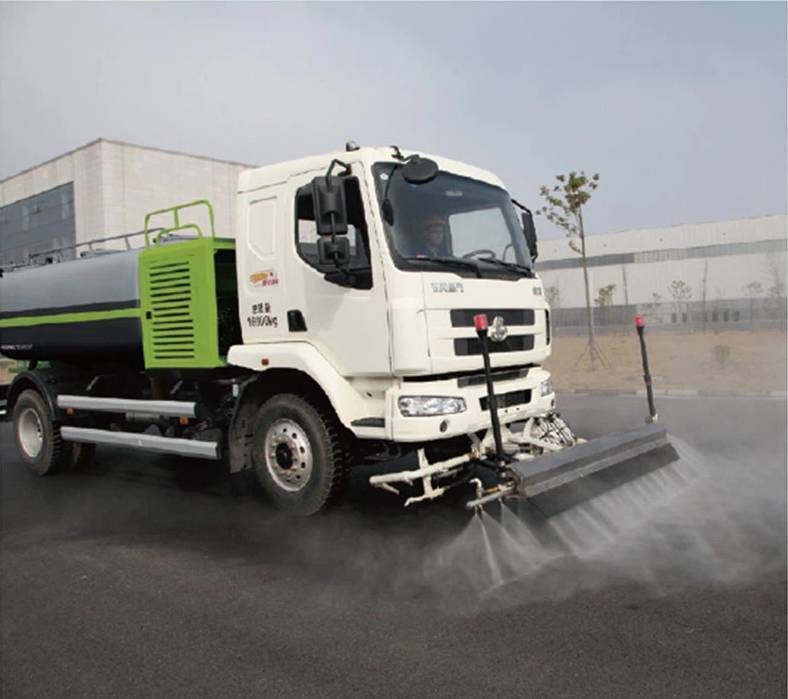

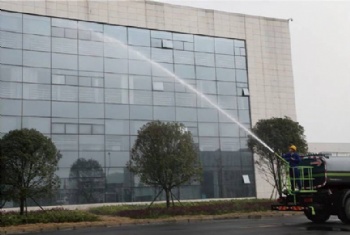

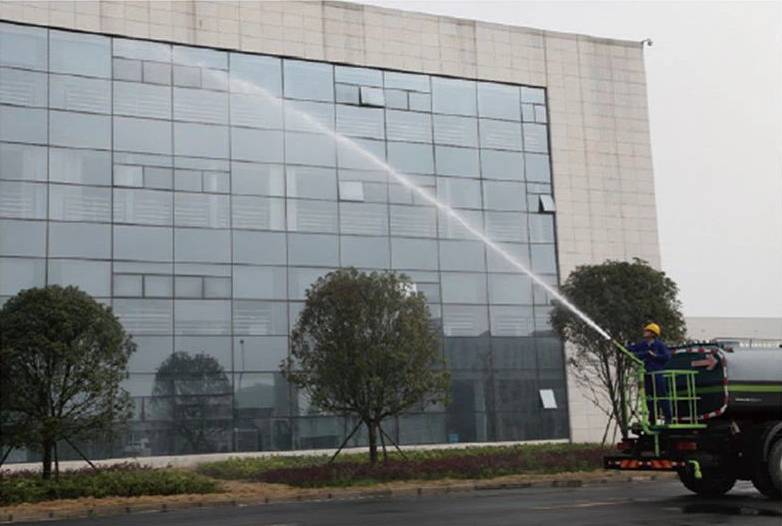

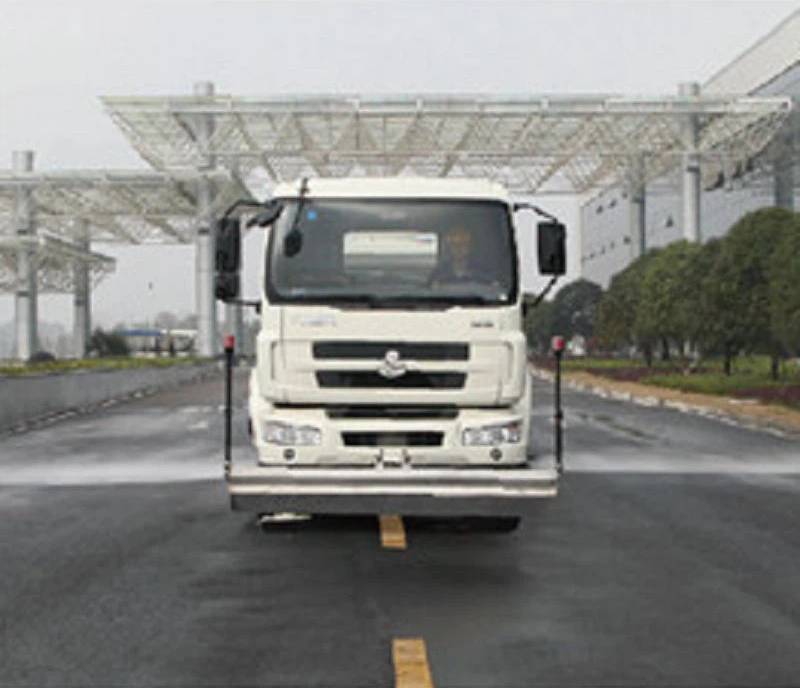

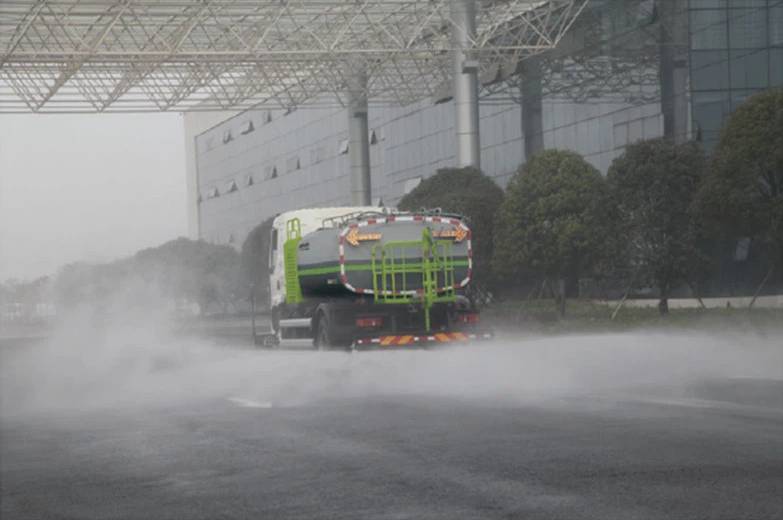

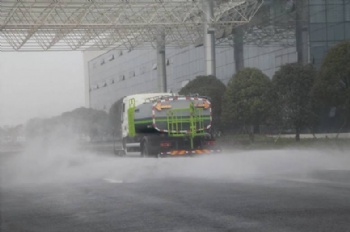

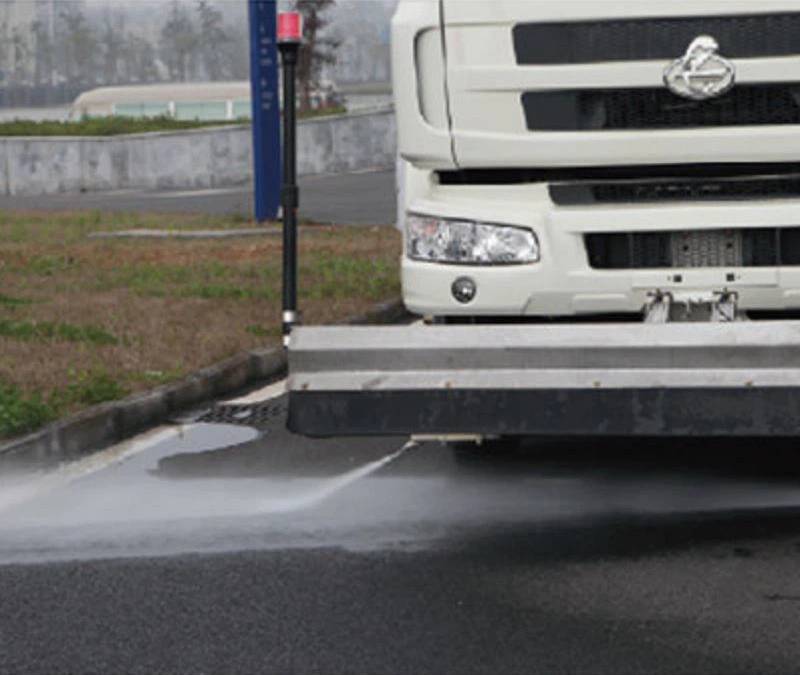

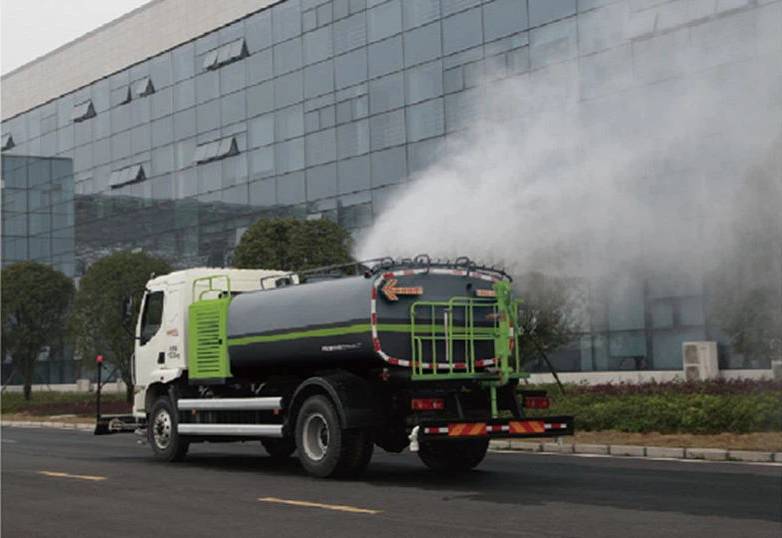

It is suitable for cleaning work on urban roads, highways, squares and port docks, as well as irrigation work in green belts. The optional self-suction device can be used in places without pressurized water supply to achieve automatic water replenishment, thereby expanding the vehicle's operation range. The optional guardrail cleaning device can be used for cleaning the railings on highways and urban areas. The optional elevated platform can be used for cleaning and maintenance of high-altitude facilities, such as road signs and billboards. The optional rear spray system can be used for dust suppression and cooling operations. It is not suitable for operations in environments where temperatures are prone to freezing.

Description
Inquiry

● HIGH EFFICIENCY
-The high pressure cleaning tanker is equipped with multiple safety protection devices and warning system to protect the water pump against overspeed damage.
-The cruise control system on the cleaning tanker improves operating quality, eases the operations, and saves the fuel.
-With the application of finite element design for the structure, the water tank reduces own weight by 10% and increases the effective capacity by 10% to realize longer operating time.

● HIGH ENVIRONMENTAL-FRIENDLINESS
-The design optimized low pressure water circuit system of the cleaning tanker realizes reduced water and energy consumptions on the precondition of meeting the operating needs.
-The best matching combination of the auxiliary engine, water pump, and drive system of the high pressure cleaning tanker realizes high-efficiency and fuel-saving and save the fuel by >10%.

● HIGH RELIABILITY
-The special flow production line, the tank forming technology, and the robot automatic welding guarantee the product quality to realize low malfunction rate and high efficiency of the vehicle.
-The cleaning tanker features complete functional equipment, multi-purpose, extensive application scope, and high operating efficiency.

ITEM	UNIT	ZBH5082GQXJXE6	ZBH5082GQXJXE6D	ZBH5182GQXDFE6	ZBH5182GQXEQE6
Wheelbase	mm	3360	3360	4500	4500
Cleaning width of water spray holder	m	≥2.6	≥2.6	3.5	3.5
Flushing width	m	≥14	≥14	24	24
Sprinkling width	m	≥12	≥12	14	14
Water gun range	m	≥28	≥28	38	38
Rated pressure of high pressure water pump	MPa	10	10	14	14
Low pressure water pump lift	m	45	45	110	110
Capacity of tank	m³	3.28	3.87	9.3	9.7

TEM	UNIT	ZBH5182GQXLZE6	ZBH5182GQXCAE6	ZBH5252GQXDFE6	ZBH5252GQXCAE6
Wheelbase	mm	4500	4500	4350+1350	4350+1350
Cleaning width of water spray holder	m	3.5	3.5	3.5	3.5
Flushing width	m	24	24	24	24
Sprinkling width	m	14	14	14	14
Water gun range	m	38	38	38	38
Rated pressure of high pressure water pump	MPa	14	14	14	14
Low pressure water pump lift	m	110	110	110	110
Capacity of tank	m³	9.45	9.3	13.5	13.5
