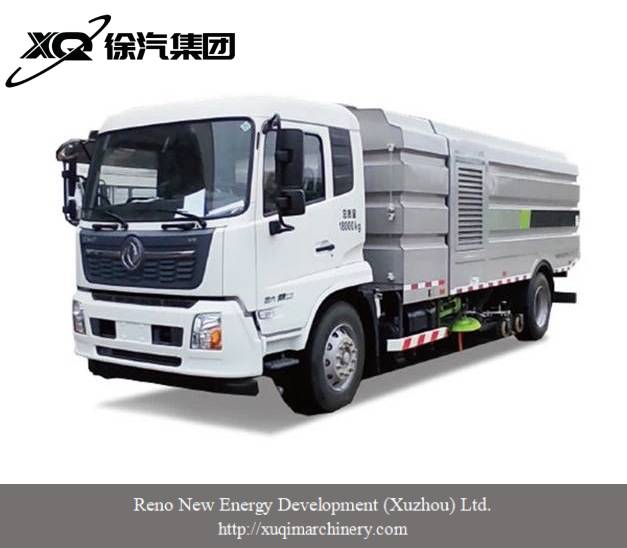

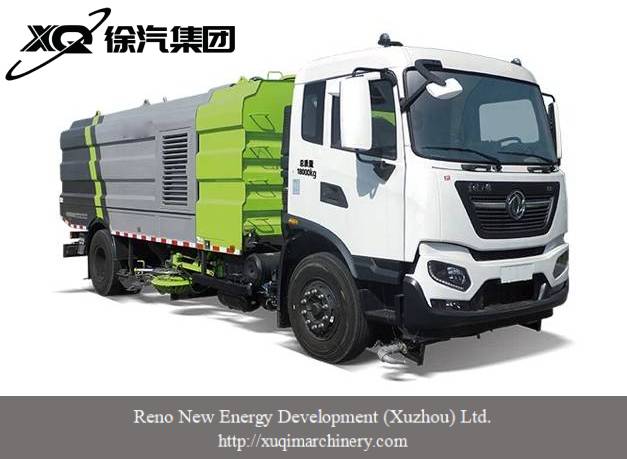

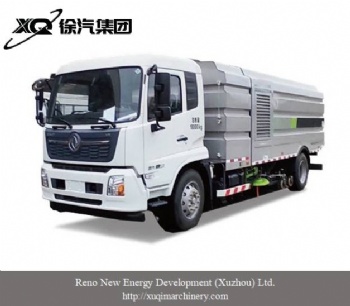

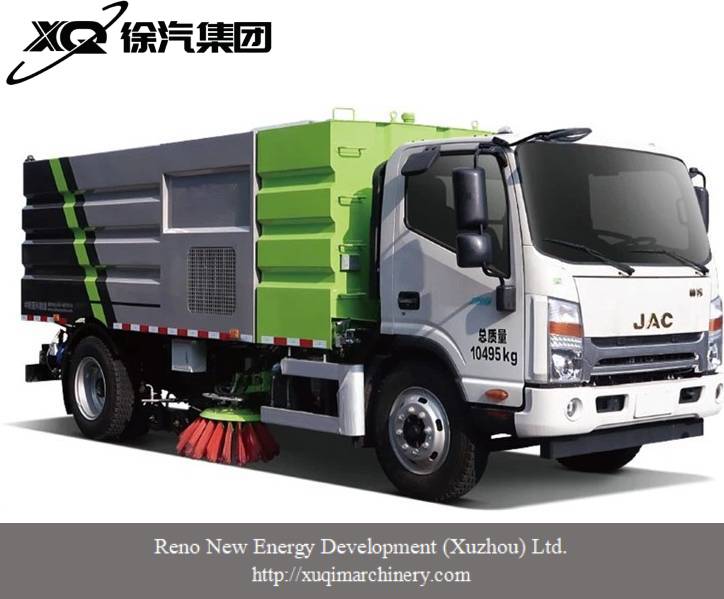

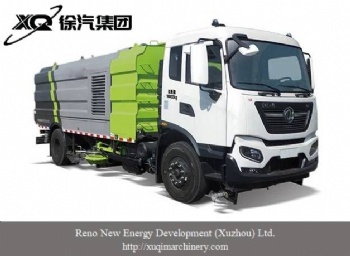

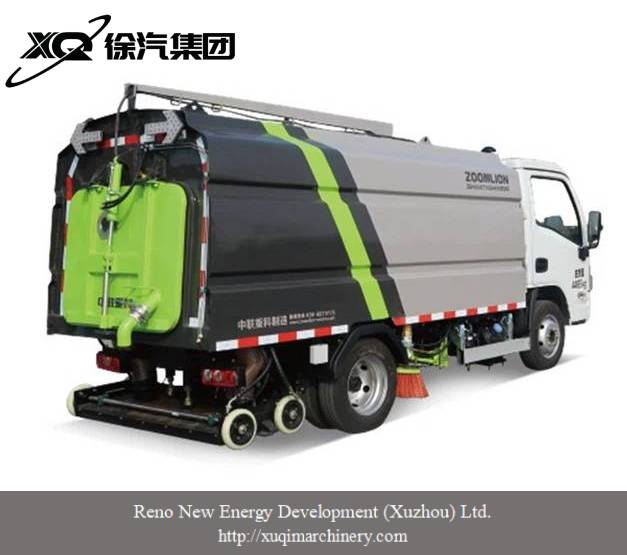

Cleaning Sweeper Truck YF

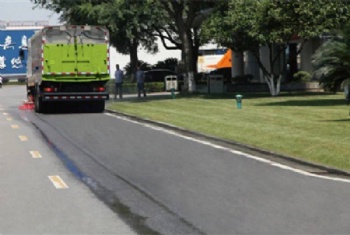

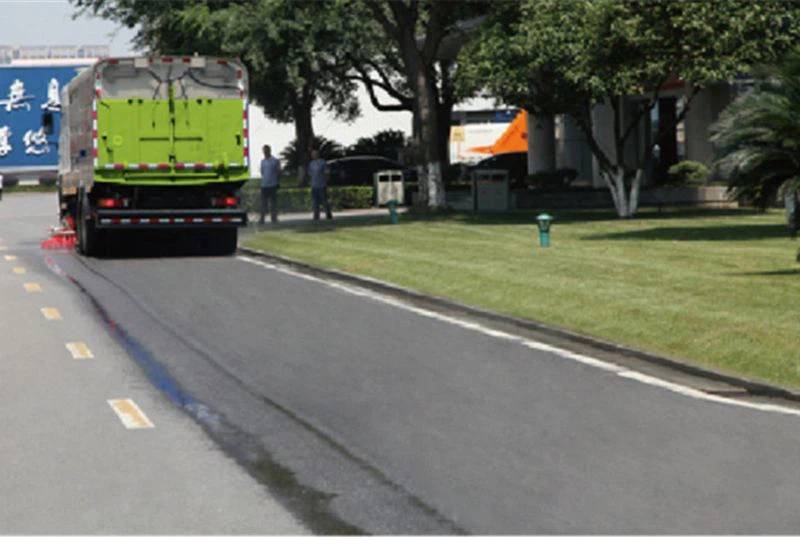

It is suitable for high cleanliness hygiene operations as well as common hygiene operations (including sweeping, cleaning and sweeping/cleaning), and is applicable to cleaning tasks on urban squares, road surfaces and roadside areas. It integrates high cleanliness cleaning/sweeping functions, and is particularly suitable for non-motorized lanes, auxiliary lanes and internal roads in some large public places (such as parks and factories).
● MULTI-PURPOSE VEHICLE AND HIGH OPERATING EFFICIENCY

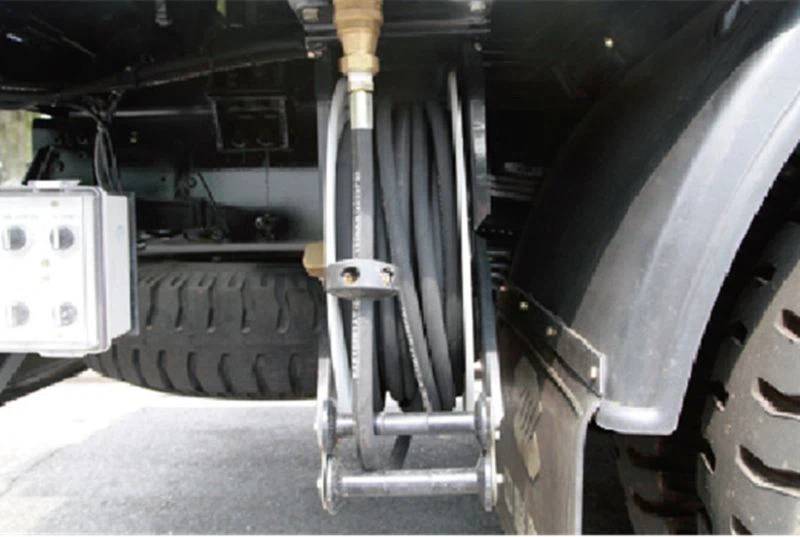

-It incorporates multiple functions, including road cleaning/sweeping, sweeping, high/low pressure cleaning, curb scrubbing, and dust-suppression mist spray, for multiple purposes.

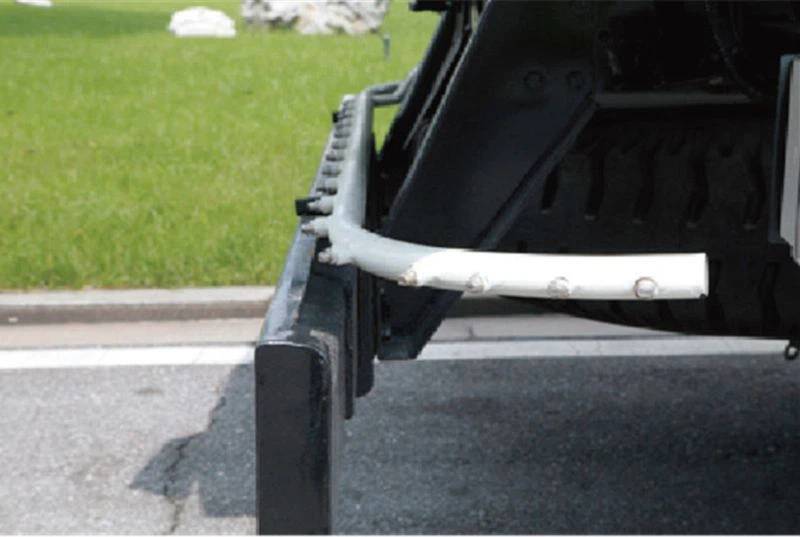

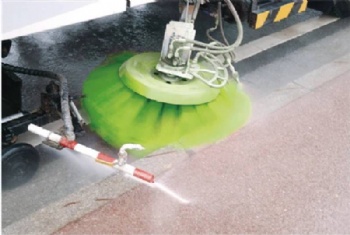

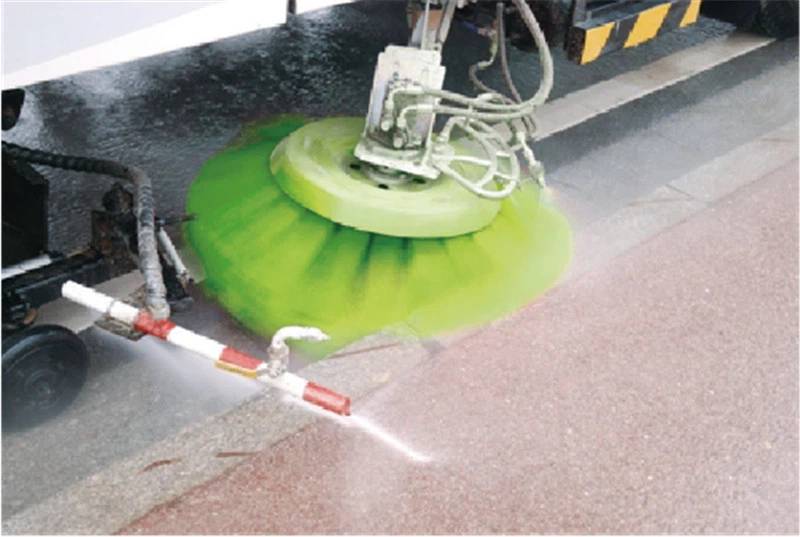

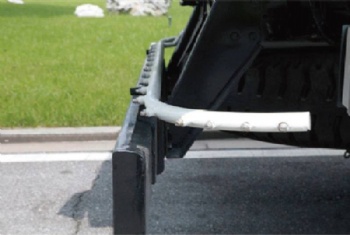

-The pioneering arrangement mode of“Two middle-mounted sweeping discs + middle-mounted wide suction nozzle + U-shaped spray boom”is adopted to realize high cleanliness rate and fast operating speed.
● STRINGENT MATERIAL SELECTION AND RELIABLE QUALITY
-The industry's pioneering corrugated tank body features light and handy structure and high resistance against deformation and cracking.
-The auxiliary engine, high pressure water pump, and electric and hydraulic parts adopt renowned brand products to guarantee high efficiency and good reliability.
-The waste tank and clean water tank are made of the stainless steel manufactured by renowned steel works, including Ansteel and Wuhan Steel, to stringently guarantee the quality.
● HIGH SAFETY AND INTELLIGENCE AND EASY OPERATIONS
-The advanced“Intelligent screen + CAN bus”electronic control system allows the one-touch operations of main functions.
-The intelligent voice alarm system is installed to monitor and alarm the abnormalities and violations, including water shortage of clean water tank, sewage fullness of waste tank, leakage of hydraulic oil, and abnormal return of waste tank, in order to guarantee the normal operations of machine and prevent the occurrence of accidents.
-The rearview monitoring system assists the driver’s safe operations.
ITEM | UNIT | ZBH5040TXSSHE6 | ZBH5070TXSQLE6 | ZBH5080TXSJXE6 |
Wheelbase | mm | 2650 | 3815 | 3815 |
Capacity of stainless steel water tank | m3 | 2 | 4.5 | 4.5 |
Stainless steel waste tank capacity | m³ | 2 | 2.8 | 3.0 |
Cleaning/sweeping width | m | 2.5 | 3.1 | 3.2 |
Cleanliness rate | - | ≥95 | ≥95 | ≥95 |
ITEM | UNIT | ZBH5110TXSQLE6 | ZBH5180TXSDFE6 | ZBH5180TXSCAE6 |
Wheelbase | mm | 4475 | 5300 | 5300 |
Capacity of stainless steel water tank | m3 | 6.2 | 9 | 9 |
Stainless steel waste tank capacity | m³ | 3.4 | 7 | 7 |
Cleaning/sweeping width | m | 3.2 | 3.5 | 3.5 |
Cleanliness rate | - | ≥95 | ≥96 | ≥96 |
TEM | UNIT | ZBH5180TXSLZE6 | ZBH5180TXSDFE6D | ZBH5250TXSDFE6 |
Wheelbase | mm | 5300 | 5000 | 5350+1350 |
Capacity of stainless steel water tank | m3 | 9 | 10 | 12.5 |
Stainless steel waste tank capacity | m³ | 7 | 7 | 9 |
Cleaning/sweeping width | m | 3.5 | 3.5 | 3.5 |
Cleanliness rate | - | ≥96 | ≥96 | ≥96 |
